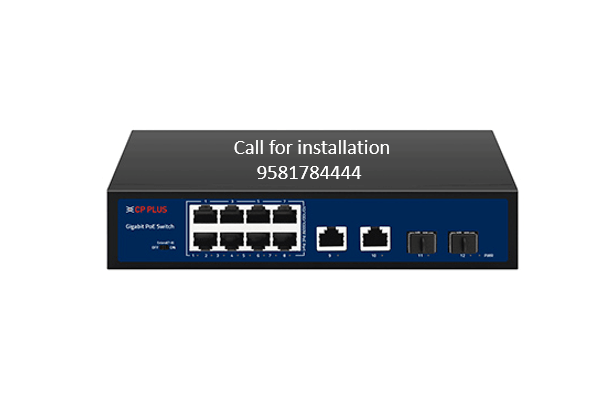

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96
50%
off

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96

Original price was: ₹9,999.00.Current price is: ₹4,980.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96

  • 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port, 2 x 1000Mbps RJ45 ports 2 x 1000Mbps SFP Port
  • Supports IEEE802.3i/802.3u/802.3x/802.3af/802.3ab/ IEEE 802.3z
  • Transmission Distance: default: 0-100m
  • Easy and safe installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96

PRODUCTLINK: CP-DNW-GPU8G2F2-96 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Switch Capacity 24Gbps Full duplex
Uplink Ports 2 x 1000Mbps RJ45 ports + 2 x 1000Mbps SFP ports
PoE Power Budget 96W
Surge Protection Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2K Differential mode/Power board: 2KV
ESD Air discharge: 8KV Contact discharge: 6KV
Ethernet Port Light Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Network Port 12
Transmission Distance 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE Ports 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
PoE Power Supply 1/2(+),3/6(-)
PoE Standard IEEE802.3af, IEEE802.3at
Packet Forwarding Rate 1.488Mpps/port
MAC Address List 2K
Power Source Input: 100-240V AC, 50/60Hz, Bult-in Power Supply
Power Consumption <5W
Operating Temperature -10°C~ 50°C
Humidity 10%-95% , non-condensing
Storage Temperature -40°C~70°C
Dimension 220 x 161 x 44 mm

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96”

FAQs

10Ports PoE Switch and 2SFP Ports CP Plus CP-DNW-GPU8G2F2-96
The CP Plus CP-DNW-GPU8G2F2-96 features 8 PoE ports, 2 Gigabit uplink ports, and 2 SFP ports. It supports VLAN, AI network optimization, and offers up to 30W per PoE port with a total power budget of 96W.
How many PoE devices can be connected to this switch?
You can connect up to 8 PoE devices to the CP-DNW-GPU8G2F2-96 switch.
What is the maximum power output per PoE port?
Each PoE port can deliver a maximum power output of 30W.
