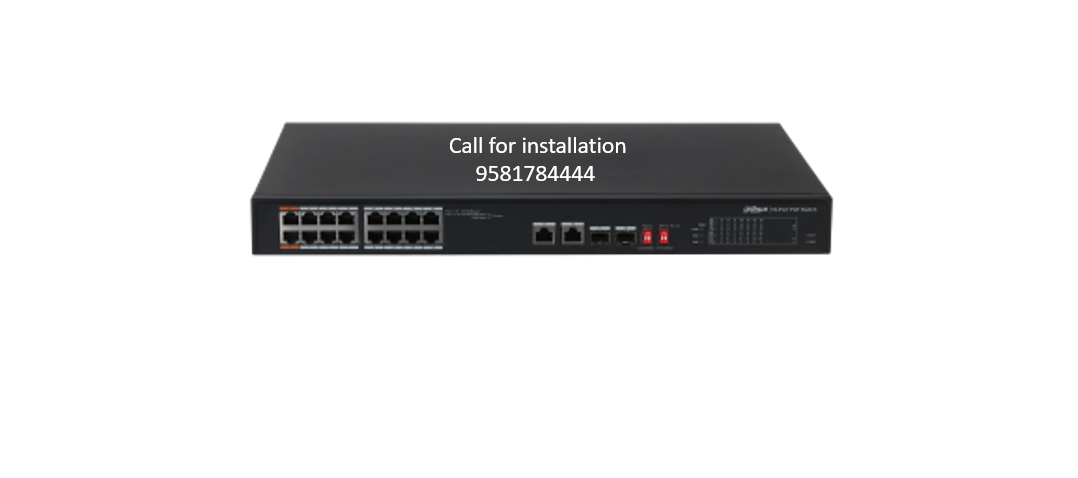

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135
60%
off

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135

Original price was: ₹25,999.00.Current price is: ₹10,500.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135

> Intelligent PoE

> PD Alive(PoE Watchdog)

> Long Distance PoE Transmission

> Smooth Transmission

> Wide Working Temperature: –10 to 55°C (14°F to 131°F)

> Port Isolation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135

PODUCTLINK: PFS3218-16ET-135 (dahuasecurity.com)

Performance
Layer Layer 2
Managed No
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.3568 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Hardware Feature
Standard Power Supply Yes
PoE Yes
Ethernet Port 16
Optical Port 2
Ethernet Port Rate 100 Mbps
Optical Port Rate 1 Gbps
Number of Bussiness Card Slots “Port 1–16: 16 × RJ45 10/100 Mbps
Port 17–18: 2 × RJ45 10/100/1000 Mbps (uplink)
Port 17–18: 2 × SFP 1000 Mbps (uplink) (combo)”
Power Supply 100V AC–240V AC
Operating Temperature –10°C to 55°C (14°F to 131°F)
Operating Humidity 10%–90%
Storage Humidity 5%–95%
Power Consumption “Idling: 5W
Full load: 135W”
PoE
PoE Standard IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Budget Port 1–2≤60W, Port 3–16≤30W, total≤135W
PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission Yes
Function
VLAN Port Isolation
QoS Yes
System Maintenance PD Alive
General
ESD Air discharge: 8kV
Contact discharge: 6kV
Thunderproof Common mode: 4kV
Differential mode: 2kV
Dimensions 440 mm × 300 mm × 44 mm (17.32″ × 11.81″ × 1.73″)
Packaging Dimensions 527 mm × 412 mm × 110 mm (20.75″ × 16.22″ × 4.33″)

16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “16Port POE and 18Port Unmanaged Desktop Switch Dahua DH-PFS3218-16ET-135”

FAQs

What is the Dahua 16Port POE and 18Port Unmanaged Desktop Switch?
The Dahua DH-PFS3218-16ET-135 is a networking switch with 16 Ethernet ports supporting Power over Ethernet (PoE) and an additional 2 non-PoE ports, totaling 18 ports. It allows you to power compatible devices such as IP cameras or wireless access points directly through the Ethernet cable.
How many devices can be connected to each switch?
You can directly connect up to 16 PoE-enabled devices to the PoE ports of the switch. Additionally, two non-PoE devices can be connected to the non-PoE ports.
What is the maximum power budget for the PoE ports?
The maximum power budget for the PoE ports may vary depending on the model and specifications of the switch. You should refer to the product documentation or specifications provided by Dahua for the exact power budget of the DH-PFS3218-16ET-135 model.
Does this switch support Gigabit Ethernet?
Yes, this switch supports Gigabit Ethernet, providing high-speed connectivity for your devices.
