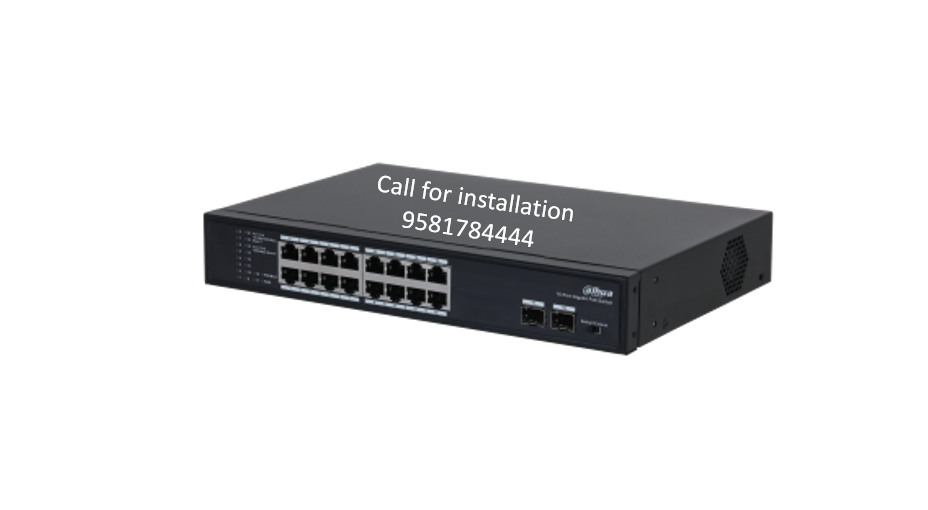

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135
50%
off

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135

Original price was: ₹26,000.00.Current price is: ₹13,000.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135

> Unmanaged gigabit PoE switch.

> Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x,IEEE802.3z standards.

> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

> Easy to install, and plug and play.

> Meets the IEEE 802.3af and IEEE802.3at power supply standards.

> Supports 250 m long-distance transmission mode.

> Manages PoE power consumption and PoE power on/off. Automatically turns off PoE if an overload is detected.

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135

PRODUCTLINK: https://www.dahuasecurity.com/in/products/All-Products/Transmission/PoE-Switches/All-gigabit-PoE-Switch/PFS3218-16GT-135

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-16:16 × RJ-45 10/100/1000 Mbps;
Port 17-18:2 × SFP 1000 Mbps

Power Supply

Built-in power supply: 100–240 VAC; 50/60 Hz; 2.5 A (maximum)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: 9 W
Full load: 135 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.784 Mpps

Packet Buffer Size

4.1 Mbit

Jumbo Frame

9600 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Feature

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Power

Port 1–16 ≤30 W;
Total ≤135 W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)

ePoE

No

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV
Differential mode: 0.5 kV

Net Weight

1.62 kg (3.57 lb)

Gross Weight

2.34 kg (5.15 lb)

Product Dimensions

285.0 mm × 189.5 mm × 43.7 mm (11.22″ × 7.46″ × 1.72″)(L × W × H)

Packaging Dimensions

369 mm × 299 mm × 81 mm (14.53″ × 11.77″ × 3.19″)(L × W × H)

Casing Material

Iron

Installation

Desktop mount; rack mount; wall mount

Certifications

CE; FCC

18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “18Port Economical Gigabit Switch with 16Port POE Dahua DH-PFS3218-16GT-135”

FAQs

What is the purpose of the DH-PFS3218-16GT-135 switch?
The DH-PFS3218-16GT-135 switch is designed to provide high-speed network connectivity and power over Ethernet (PoE) for compatible devices in a cost-effective manner.
How many ports does the switch have, and how many support PoE?
This switch has a total of 18 ports, with 16 of them supporting PoE for powering compatible devices.
What is Power over Ethernet (PoE)?
PoE allows the switch to transmit both data and power over a single Ethernet cable, simplifying installation and reducing the need for additional power outlets.
What is the maximum power budget of the switch?
The DH-PFS3218-16GT-135 switch typically has a maximum power budget of XX watts, allowing it to provide power to connected PoE devices based on their power requirements
