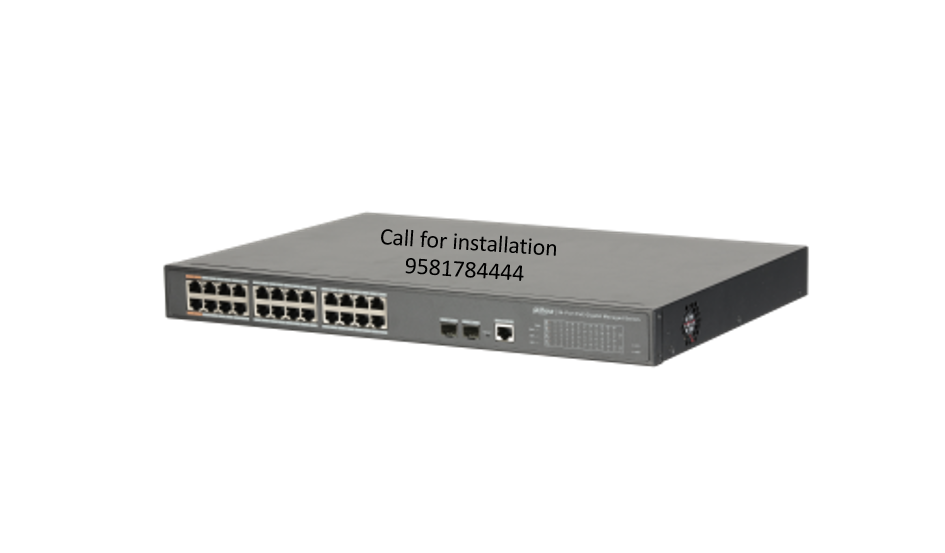

24 Port Dahua POE Gigabit Switch DH-PFS4226-24GT-240
52%
off

24 Port Dahua POE Gigabit Switch DH-PFS4226-24GT-240

Original price was: ₹65,000.00.Current price is: ₹31,000.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

24 Port Dahua POE Gigabit Switch DH-PFS4226-24GT-240

> Layer 2 network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Support Hi-PoE 60W
> Network Redundancy: STP/RSTP/MSTP
> Support IPv4/IPv6, and DHCP
> Network management based on SNMP
> Configuration: Web, Telnet, CLI Command
> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
> Large data cache(4M), real-time transmission
> MAC auto study and aging, MAC address list capacity is 8K
> EMC high protection design

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

24 Port Dahua POE Gigabit Switch DH-PFS4226-24GT-240

24 Port Dahua POE Gigabit Switch DH-PFS4226-24GT-240

PRODUCTLINK: PFS4226-24GT-240 (dahuasecurity.com)

Technical Specifications

Technical Specification
Model DH-PFS4226-24GT-240
Ethernet Port 24*10/100/1000 Base-T (PoE power supply)

2*100/1000 Base-X
RS232 Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
PoE Power Consumption Port1 and port 2 support Hi-PoE 60W

Each power ≤30W, Total≤240W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 52Gbps
Packet Forwarding Rate 38.688Mpps
Packet Buffer Memory 4Mb
Application Humidity 5%~95%
Power AC100-240V, 50/60Hz
Lightning Protection Common Mode 2KV

Differential Mode 1KV
Working Temperature -10°C~55°C
Dimension(W×D×H) 440mm x300mm x44mm
Accessories
Model
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
System Username / password: admin/admin
IP Address :192.168.1.110/24
PoE Budget Total≤240W
MAC Table 8K
NTP Support
DHCP Support DHCP client/server
Support DHCP snooping
VLAN 802.1Q Standard VLAN
Port Aggregation Manual aggregation/LACP
Mirroring Many-to-one port mirroring
Flow Control Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame
Multicast IGMP Snooping v1/v2/v3
Security Features Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
Spanning tree Support STP/RSTP/MSTP
LLDP Support
MAC Table Support MAC address table configuration
QoS Support QoS base on CoS/DPL/PCP/DEI

Each port support 8 output queue

Support port shaping

Support port tag remarking

Support QoS base on DSCP
System Maintenance Support the configuration file upload/download

Support the updated packet upload

System log
Network Management WEB(http protocol), serial, SNMP
