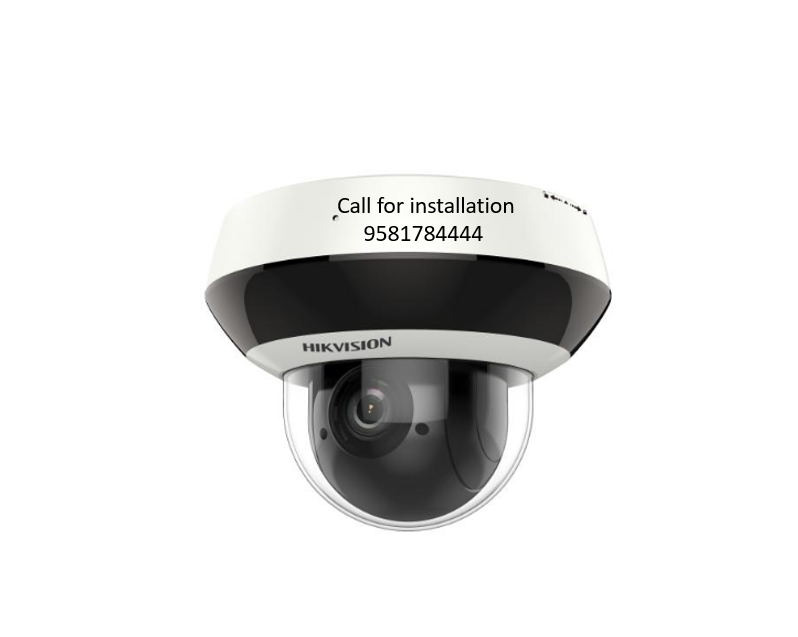

2MP 2INCH 4X ZOOM IR MINI DS-2DE2A204IW-DE3 HIKVISION DOME NETWORK CCTV CAMERA IP66 CCTV CAMERA FOR HOME AND OFFICE

2MP 2INCH 4X ZOOM IR MINI DS-2DE2A204IW-DE3 HIKVISION DOME NETWORK CCTV CAMERA IP66 CCTV CAMERA FOR HOME AND OFFICE

2MP 2INCH 4X ZOOM IR MINI DS-2DE2A204IW-DE3 HIKVISION DOME NETWORK CCTV CAMERA IP66 CCTV CAMERA FOR HOME AND OFFICE

PRODUCTLINK: DS-2DE2A204IW-DE3(S6) – PTZ Cameras – Hikvision

• Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30,000 s
• Day & NightIR cut filter
• Zoom4x optical, 16x digital
• Slow ShutterYes

• Lens
• Focal Length2.8 to 12 mm, 4 × Optical
• FOVHorizontal FOV 100.5° to 32.66°, vertical FOV 52.84° to 18.356°, diagonal FOV 120.26° to 37.5°
• FocusAuto, semi-auto, manual
• ApertureMax. F1.5
• Zoom SpeedApprox. 2 s

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeIR Distance: up to 20 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0° to 355°
• Movement Range (Tilt)0° to 90°
• Pan SpeedPan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Park ActionPreset
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset, dome reboot, dome adjust
• Power-Off MemoryYes

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
• Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/HostUp to 32 users; 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 11+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR＞52dB
• DefogDigital Defog
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

  1 output (line out), line level, output impedance: 600 Ω

• ResetYes
• Power Output12 VDC, max. 60 mA
