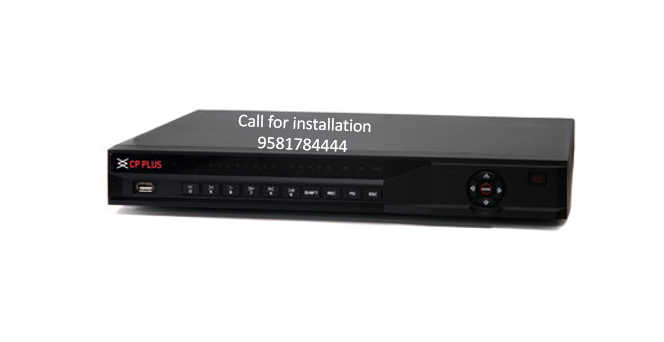

CP Plus CP-UNR-4K5082-V2 8 Channel 4K Network Video Recorder
48%
off

32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata

Original price was: ₹45,999.00.Current price is: ₹24,000.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
  • Up to 2 channels video stream (analog channel) Perimeter Protection
  • Interstream/H.265 dual-stream video compression
  • Up to 16 channels video stream (analog channel) SMD Plus
  • Support 2 SATA HDDs up to 10TB Each, 2 USB Ports
  • Up to 2 channels video stream (analog channel) human face recognition
  • 1 HDMI / 1 VGA simultaneous video output
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata

32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata

PRODUCTLINK: CP-UVR-3201K2-I2-32 Ch. 5M-N Digital Video Recorder | Cp Plus | Cpplusworld.com

PRODUCT DESCRIPTION:

System Overview
The newly developed this Series All-in one by CP PLUS has brought a huge change to the surveillance industry with an HD video recorder that is made to be compatible with multiple access technology which adds to the effectiveness of the existing security solution by upgrading it. This Series All-in one makes it easier for the end-user by reducing the system cost and simplifying the installation and use. The greater quality and performance provided by the Series All-in one at such a pocket-friendly price makes it ideal for use at a wide range of applications such as retail stores, home protection, roads and traffic signals, among the others.

Functions
Multi-signal Support
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats. This helps the user upgrade their systems without requiring major overhauls. gCMOB/ iCMOB Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; Instron cloud support; Playback; digital zoom ins; two-way talk, and more.
KVMS Pro
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is released with the surveillance hardware and exclusively supports CP PLUS devices.
About CP PLUS
Signal auto-adapt
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual intervention. This has provided much ease to the user since signal compatibility was always a towering concern.

Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 32 channels, each channel up to 6MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA
AI Search Search by target classification (Human, Vehicle)
Video Resolution HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720.
Video Recording Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/ D1/CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps)
Performance 2 channel, 10 IVS for each channel
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Video Display Split 1/4/8/9/16/25/36
Video Channel 32 channels, BNC
Audio Compression G.711A, G.711U, PCM
Audio Output 1 channel, RCA
Audio Input 1 channel, RCA
Motion Detection MD Zones: 396 (22 × 18)
Video Loss Supports
Smart Phone iPhone, iPad, Android Phone
Face Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera
Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
Hard Disk 2 SATA Ports, Up to 10TB capacity Each
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries® ions and state can be added to each face picture
Bit Rate 32 Kbps–6144 Kbps Per Channel
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Database Application Each database can be applied to video channels independently
Recording Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account 128 users
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 1 RJ-45 Port (1000 MB)
Interface Ports 2 USB Ports (1 USB 2.0 , 1 USB 3.0), 1 RS485
Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, InstaOn, IP Search, ONVIF 16.12, CGI Conformant
Power Supply DC 12V/5A

32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “32 Channel 5M-N Digital Video Recorder CP Plus CP-UVR-3201K2-I2 2Sata”

FAQs

What is the maximum resolution supported by the CP-UVR-3201K2-I2 DVR?
The CP-UVR-3201K2-I2 supports video recording at up to 5MP-N resolution.
How many channels does this DVR support?
This DVR supports up to 32 channels, allowing for simultaneous recording from multiple cameras.
How many SATA ports does the CP-UVR-3201K2-I2 have?
The CP-UVR-3201K2-I2 comes with 2 SATA ports, enabling the installation of up to two SATA hard drives for storage.
