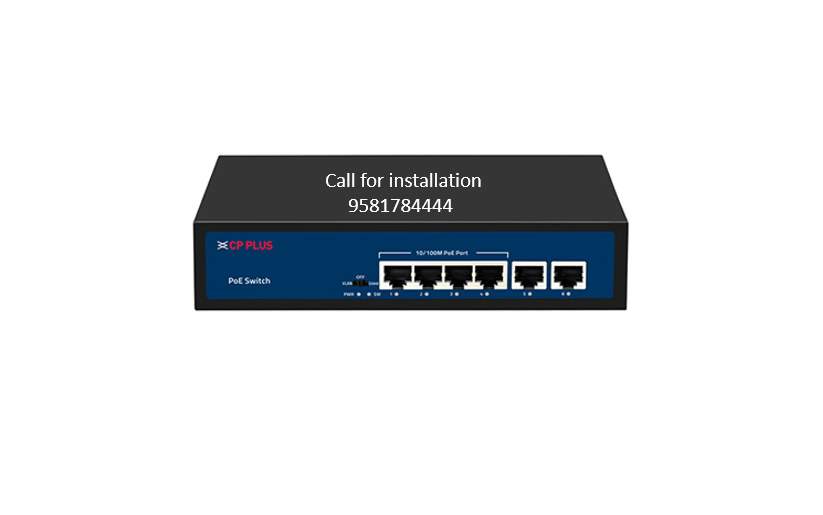

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2
72%
off

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2

Original price was: ₹7,999.00.Current price is: ₹2,200.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2

  • 4, 100Mbps; RJ45 ports, Supports Max. 30W Output of Single PoE Port
  • Support IEEE802.3/802.3u/802.3x
  • 2, 100Mbps, Transmission Distance: 0-100m
  • Easy and safe installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2

PRODUCTLINK: CP-DNW-HPU4H2-48-V2 (cpplusworld.com)

PRODC DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Network Port 4, 10/100Mbps; RJ45 port; Max. 30W Output of Single PoE Port
Uplink Ports 2, 10/100Mbps; Transmission Distance: Default: 0-100m
Switch Capacity 1.2Gbps (non-blocking)
Forwarding Rates 0.1488 Mbps/port
PoE Standard IEEE802.3/802.3u/802.3x
PoE Power Supply 1/2(+),3/6(-)
Transmission Distance 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List 2k
Lightning Protection Support
PoE Power Budget 48W
ESD Protection Air discharge: 8KV Contact discharge: 6KV
Power Consumption <5W
LED light Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Power Source Built-in Power Supply, Input: 100-240V AC, 50/60Hz
Power Light Light on: Powering Light off: No Power
Working Temp -10°C ~50°C
Humidity 5%-95% , non-condensing
Storage Temperature -40°C ~70°C
Dimension 200mm x 118mm x 44mm (LxWxH)

4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “4 PoE Ports and 2 Uplink Ports CP Plus CP-DNW-HPU4H2-48-V2”

FAQs

What is the maximum power output per PoE port on the CP-DNW-HPU4H2-48-V2?
Each PoE port can provide up to 30W of power, suitable for powering IP cameras, wireless access points, and other PoE-enabled devices.
How many devices can be connected to the CP-DNW-HPU4H2-48-V2?
This switch has 4 PoE ports and 2 uplink ports, allowing you to connect up to 6 devices in total.
What is the total power budget for the PoE ports on this switch?
The total power budget for the PoE ports is 48W.
