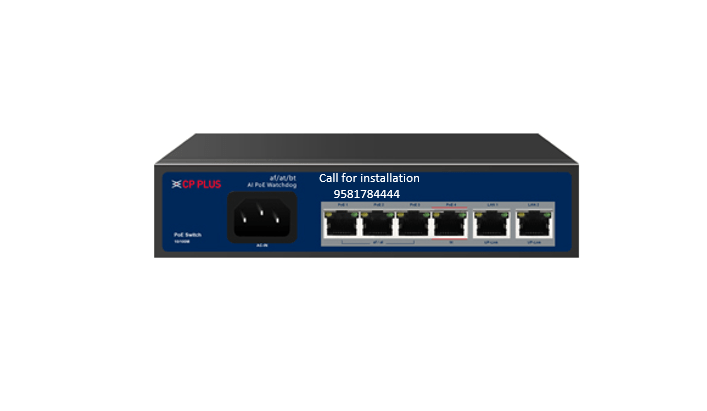

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65
68%
off

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65

Original price was: ₹4,900.00.Current price is: ₹1,590.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65

  • Using CAT.5 network patch cords support power for the wireless AP/CPE and IP/PTZ camera.
  • Networking standard: IEEE802.3af/at/bt.
  • PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
  • FE ports can support 250 meters long distance transmission automatically
  • 6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
  • Support 60W PoE receiving power, free of power adapter & simplify power supply
  • The Max output power of the port is 60W, which is convenient for hi-power equipment
  • Zero configuration feature power supply is automatically supplied to the adaptive equipment

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65

PRODUCTLINK: CP-ANW-HP4H2-N65-4EP + 2E 10/100Mbps AI PoE Switch | Cp Plus | Cpplusworld.com

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Network Port PoE (1~3) :10/100Mbps PoE ports (RJ45) PoE (4) :10/100Mbps PoE port, BT port, Compatible uplink port (RJ45) LAN (1~2):10/100Mbps uplink port (RJ45)
Switch Capacity Bandwidth 1.2 Gbps
PoE Standard IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance 100Mbps /10Mbps Adaptive MAX 250m
MAC Address List 2K
Lightning Protection 6KV, Per: IEC61000-4-5
PoE Power Budget 65W
Power Source AC 180~240V Total ≤65W
Working Temp -30°C ~60°C
Humidity 10%~90% (Non-condensing)
Storage Temperature -40°C ~70°C
Storage Humidity 5%~90% (Non-condensing)

4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “4Ethernet Port CP Plus with 2E 10/100Mbps PoE Switch CP-ANW-HP4H2-N65”

FAQs

What is the CP Plus CP-ANW-HP4H2-N65 switch used for?
The CP-ANW-HP4H2-N65 switch is used to expand the number of Ethernet ports in a network while also providing PoE capabilities. It's commonly used in small to medium-sized network installations to connect PoE-enabled devices such as IP cameras, access points, and VoIP phones.
How many PoE ports does it have?
The CP-ANW-HP4H2-N65 switch has 4 Ethernet ports that support PoE, allowing you to power PoE-enabled devices directly from the switch without the need for additional power adapters.
What are the uplink ports used for?
The switch features 2 uplink ports, which are typically used to connect the switch to the rest of the network, such as routers, other switches, or directly to the internet gateway.
