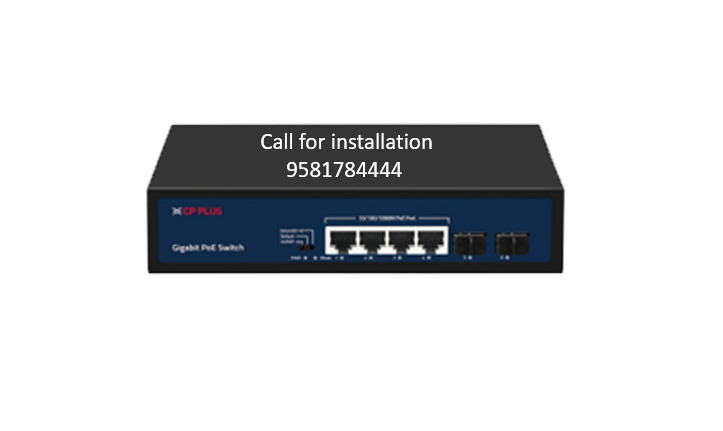

Name: 4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65
SKU: CP355P
Price: 2980 INR
Availability: InStock

4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65

4, 100/1000Mbps; RJ45 ports, port 1 supports Max. 60W, and other ports supports Max. 30W Output of Single PoE Port
Support IEEE802.3/802.3u/802.3x/802.3z/802.3ab
2, 1000Mbps, SFP Port, Transmission Distance: 0-100m
Easy and safe installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65

PRODUCTLINK: CP-DNW-GPU4F2-65 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Switch Capacity	12 Gbps (Non Blocking)
Uplink Ports	2, 1000Mbps, SFP Port, Transmission Distance: 0-100m
PoE Power Budget	65W
Anti-thunder Level	Power board: 2KV; Network Port – Not supported
ESD	n/a
Ethernet Port Light	Power board: 2KV; Network Port – Not supported
Network Port	6
Transmission Distance	Default & VLAN mode: 0-100m/1000Mbps, Extended mode (cat 5 or above UTP) Port 1-2: 0-100m/1000Mbps, Port 3-4: Max. 250m/10Mbps
PoE Ports	4, 100/1000Mbps RJ45 ports, Port 1 support Max. 60W output, other ports Max. 30W output of Single PoE Port; Transmission distance:0~250meters
PoE Power Supply	1/2(+), 3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at, IEEE802.3bt
Packet Forwarding Rate	1.488 Mbps/port
MAC Address List	2K
Power Source	Input: 100-240V AC, 50/60Hz, 52V DC 1.25A built-in power supply
Power Consumption	<5W
Operating Temperature	-20°C ~50°C
Humidity	10%-95% , non-condensing
Storage Temperature	-20°C ~50°C
Dimension	200mm x 118mm x 44mm

4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera CP Plus Camera Dahua IP Camera Wireless 360 camera Human detection camera Dlink Ptz camera Hawkvision IP Bullet camera Honeywell IP down camera Biometric attendance Door access control Timewatch Glass door access control Essl Door Access Biomax Biometric Automatic school bell School bell Vamaa Digital board DG board Interactive white panel Evota Interactive 4K flat panel Infrared Interactive white board Cornea Smart classroom equipment School solutions Audio broadcast system Two way audio broadcast School audio broadcast Benq Projector for classroom LG theatre projector CCTV monitors Surveillance hard disk Seagate CCTV hard disk Money counting machine POE switch Parking solution Video door phone Boom barriers Flap barriers X-ray baggage scanner Smart door lock School accessories Intercom Fire and safety

Reviews

There are no reviews yet.

Be the first to review “4Gigabit PoE and 2SFP Uplink Ports Switch CP Plus CP-DNW-GPU4F2-65”

You must be logged in to post a review.

FAQs

What are the main features of the CP-DNW-GPU4F2-65 switch?

The CP-DNW-GPU4F2-65 switch features 4 Gigabit PoE ports and 2 SFP uplink ports, providing high-speed connectivity for your network devices.

What is Power over Ethernet (PoE), and how does it benefit me?

PoE allows you to power your compatible devices, such as IP cameras or access points, through the Ethernet cable itself, eliminating the need for separate power cables and outlets.

Can this switch handle high-bandwidth applications?

Yes, the Gigabit Ethernet ports ensure fast data transfer rates, making it suitable for bandwidth-intensive tasks like video streaming or large file transfers.
