System Overview
Analog cameras can be advantageous in more ways than one – they are economical, especially for large scale setups, and are simple to install. However, one of the major downsides of earlier analog cameras was the image quality, which is critical in the present times. With subsequent technological upgrades over the years, HD resolution was introduced in analog CCTV systems. This served as a major breakthrough as high quality imagery was only available in IP system which was comparatively a costlier option.

Another challenge with analog systems was its compatibility constraint. Newer versions of analog cameras
would not pair up with older versions. CP PLUS introduced the revolutionary UNI + technology which supported all analog & HD video formats including CVB.

Functions

Starlight Technology
This camera is widely used to provide sharper and clearer picture quality with the help of its exceptional starlight sensitivity as the camera improves night vision in low light conditions. This technology is useful in conditions with extremely low light as the starlight technology turns almost completely dark images into those of clear colors.
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.

Image Sensor	1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
Minimum Illumination	0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Effective Pixels	2880 (H) × 1620 (V)
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto switch by ICR
Lens	3.6mm (2.8mm optional)
Max Aperture	F1.6
Auto Iris	Fixed iris
Lens Type	Fixed-focal
S/N Ratio	>65dB
DORI Distance	3.6mm: 80m (Detect) 32m (Observe) 16m (Recognize) 8m (Identify) 2.8mm: 63.6m (Detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960H
Privacy Mask	Off/on (8 area, rectangle)
Angle of View	3.6mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
IR Range	IR Range of 30Mtr., Smart IR
Casing	Plastic throughout the whole casing
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) ; <95% (non-condensation)
Storage Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.7W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	161.3mm x 69.7mm x 70.0mm
Weight	0.19 kg

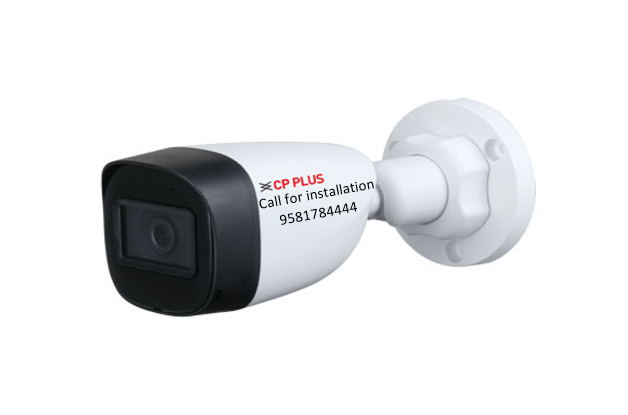

5MP Bullet CCTV Camera CP Plus CP-USC-TA50L3-S with Smart IR, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera CP Plus Camera Dahua IP Camera Wireless 360 camera Human detection camera Dlink Ptz camera Hawkvision IP Bullet camera Honeywell IP down camera Biometric attendance Door access control Timewatch Glass door access control Essl Door Access Biomax Biometric Automatic school bell School bell Vamaa Digital board DG board Interactive white panel Evota Interactive 4K flat panel Infrared Interactive white board Cornea Smart classroom equipment School solutions Audio broadcast system Two way audio broadcast School audio broadcast Benq Projector for classroom LG theatre projector CCTV monitors Surveillance hard disk Seagate CCTV hard disk Money counting machine POE switch Parking solution Video door phone Boom barriers Flap barriers X-ray baggage scanner Smart door lock School accessories Intercom Fire and safety

Reviews

There are no reviews yet.

Be the first to review “5MP Bullet CCTV Camera CP Plus CP-USC-TA50L3-S with Smart IR”

You must be logged in to post a review.

FAQs

What is the resolution of the CP-USC-TA50L3-S camera?

The camera features a high-resolution 5 megapixels, providing clear and detailed video footage for effective surveillance.

Does the camera support night vision?

Yes, the camera is equipped with Smart IR technology for night vision, allowing it to capture clear images even in low-light or no-light conditions.

Is the camera weatherproof?

Yes, the camera is designed for outdoor use and comes with weatherproof housing, ensuring protection against dust, water, and harsh weather conditions.
