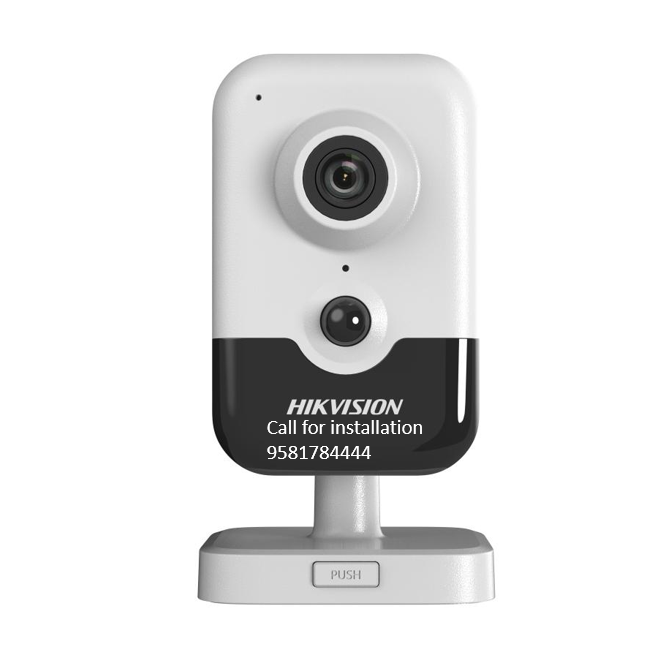

6MP HIKVISION Indoor Audio DS-2CD2463G0-IW Fixed PIR Cube Network CCTV Camera

6MP HIKVISION Indoor Audio DS-2CD2463G0-IW Fixed PIR Cube Network CCTV Camera

6MP HIKVISION Indoor Audio DS-2CD2463G0-IW Fixed PIR Cube Network CCTV Camera

PRODUCTLINK: DS-2CD2463G0-IW – Network Cameras – Hikvision

• Camera
• Image Sensor1/2.9″ Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Day &NightIR Cut Filter
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR3D DNR

• Lens
• Lens2.8/4 mm
• ApertureF2.0
• FOV

  2.8 mm, horizontal FOV: 97°, vertical FOV: 67°, diagonal FOV: 121°

  4 mm, horizontal FOV: 78°, vertical FOV: 53°, diagonal FOV: 98°

• Lens MountM12

• Illuminator
• IR Range10 m
• Wavelength850 nm

• PIR
• PIR AngleHorizontal: 90°, vertical: 80°
• PIR Range10 m

• Video
• Max. Resolution3072 × 2048
• Main Stream

  50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)

  25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)

  30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub Stream

  50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)

  60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps
• SVCSupport H.264 and H.265 encoding

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate16 kHz

• Image
• Image EnhancementBLC/3D DNR/HLC
• Day/Night SwitchDay/Night/Auto/Schedule

• Wi-Fi
• Frequency2.412 GHz to 2.4835 GHz
• Channel Bandwidth20/40 MHz
• SecurityWPA, WPA2
• Transfer Rate

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Wireless Range50 m
• Wireless StandardsIEEE 802.11b/g/n

• Network
• Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Audio1 built-in mic, 1 built-in speaker, mono sound
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

• Compression Standard
• H.264+Main stream supports
• H.265+Main stream supports

• Smart Feature-Set
• Face DetectionYes

• General
• ResetYes
• Startup And Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• MaterialPlastic
