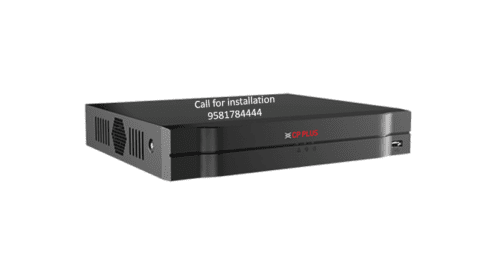

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata
40%
off

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata

Original price was: ₹9,999.00.Current price is: ₹6,000.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 16 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth
  • Supports Full-channel AI Instastream
  • Support 1 SATA HDD up to 16TB Each, 3 USB Ports
  • Up to 8 channels video stream (analog channel) SMD Plus
  • Up to 8 channels video stream (analog channel) perimeter protection
  • Up to 2 channels video stream (analog channel) human face recognition
  • AI Instastream/Instastream/H.265 dual-stream video compression
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata

PRODUCTLINK: CP-UVR-0801L1-4KI3-V2 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
CP Plus has introduced the new and impactful range of DVRs under the Lite Series which has been integrated with the 4K and H.265 encoding technology that provides you with an outstanding at a reasonably pocket-friendly price. The 4K resolution processors present in this product help in bringing out every little detail in the image. Along with that, this DVR uses the intuitive shortcut operation menu which lets you control and manage the system remotely as well and can work as edge storage, central storage, backup storage.

The highly compatible design of this DVR allows you to third-party devices. This makes this product the ideal solution to your surveillance requirements as it can run independently of video management systems. This DVR
by CP Plus has wide-ranging applications such as in keeping the public safe, conserving the water, transportation, city centers, educational facilities, and other institutions.

Functions
Multi-signal Support
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats. This helps the user upgrade their systems without requiring major overhauls. gCMOB/ iCMOB Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; Instron cloud support; Playback; digital zoom ins; two-way talk, and more.
KVMS Pro
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is released with the surveillance hardware and exclusively supports CP PLUS devices.
About CP PLUS
Signal auto-adapt
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual intervention. This has provided much ease to the user since signal compatibility was always a towering concern.

Processor Industrial-grade processor
Operating System Embedded LINUX
IP Camera Input Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Camera Input 1. CVI: 4K@25/30 fps; 6MP@20 fps; 5 MP@20 fps; 5MP@25 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5MP@20fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5MP@20 fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
Two-way Talk Support (share the same audio input with the first channel)
User Interface Web; Local GUI
SMD Plus by DVR 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by DVR (Number of Channels) Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by DVR (Number of Channels) 2 channels (up to 12 face images each channel)
Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by DVR (Number of Channels) 2 channels
Video Input 8 channel, BNC
Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Video Compression H.265; Smart H.264+; H.264
Encode Strategy AI Instastream; Instastream
Video Streaming Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps– 15fps); D1/CIF@(1 fps–25/30fps)
Video Display Split 1/4/8/9
Audio Input 1-channel RCA, 8-channel BNC (Coaxial Audio)
Bit Rate 32 kbps–6144 kbps
Audio Output 1 channel, RCA
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Audio Compression G.711A, G.711U, PCM
General Alarm Motion detection; video loss; tampering
Anomaly Alarm No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm Face detection; face recognition; perimeter protection
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Smart Phone iPhone, iPad, Android Phone
Hard Disk 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
Recording Playback 1/4/9
Recording Mode General, motion detection; intelligent; alarm; POS
Playback Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode USB Device/Network
Interface Ports 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode
Ethernet 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Protocol IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF Ver. 2.0
Power Supply DC 12V, 2A
Power Consumption <10 W (without HDD)
Operating Humidity 10%–90% (RH)
Operating Temperature -10°C ~ +55°C (14°F ~ +131°F)
Dimension 260.0 mm × 237.9 mm × 47.6 mm
Weight 1.40 Kg

8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “8 Channel 5MP DVR CP Plus CP-UVR-0801L1-4KI3-V2 1 Sata”

FAQs

What is the maximum resolution supported by the DVR?
The CP-UVR-0801L1-4KI3-V2 DVR supports up to 5 megapixels (5MP) resolution, ensuring high-definition video recording for comprehensive surveillance.
How many channels does the DVR support?
As indicated by the name, the CP-UVR-0801L1-4KI3-V2 supports 8 channels for video input, enabling simultaneous recording from up to 8 cameras.
Is it compatible with CP Plus cameras only?
While optimized for use with CP Plus cameras, the CP-UVR-0801L1-4KI3-V2 DVR may also be compatible with cameras from other manufacturers that adhere to standard video protocols.
Does it support remote viewing?
Yes, the CP-UVR-0801L1-4KI3-V2 DVR typically supports remote viewing capabilities, allowing users to monitor their surveillance footage remotely via smartphones, tablets, or computers.
