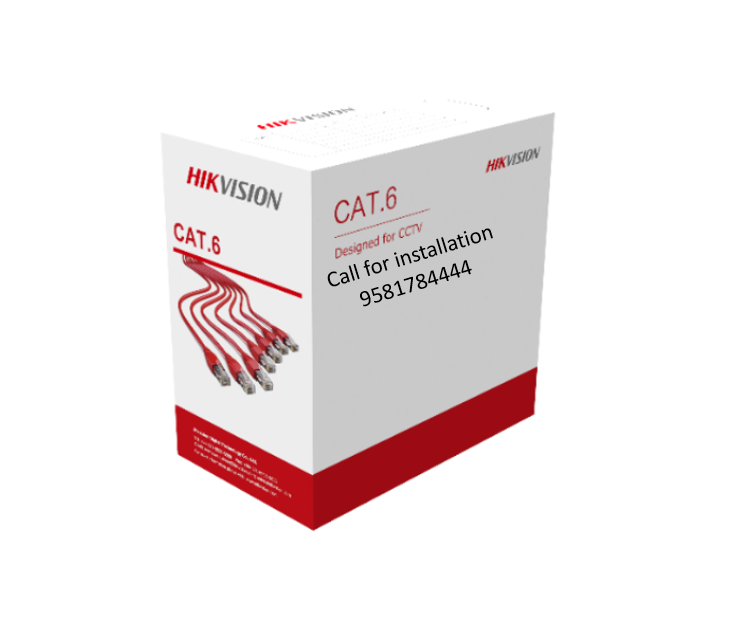

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM
50%
off

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM

Original price was: ₹9,999.00.Current price is: ₹4,999.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM

  • 305 m cost-effective CAT6 CCA network cable
  • Full diameter and full length
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM

PRODUCTLINK: DS-1LN6U-W/CCA – Hikvision

  • General
  • Core Color1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,
  • PackingCarton
  • Carton Dimension41x41x24cm
  • Packing Length(305±1.5)m
  • Rip-CordYes
  • Drain WireNo
  • Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
  • Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,100 – 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,
  • Conductor
  • MaterialCCA（Copper content：27%）
  • Nom.O.D.(Mm)0.585±0.01
  • Insulation
  • MaterialSolid HDPE
  • Diameter1.05±0.05mm
  • Sheath
  • Thickness0.50±0.05 mm
  • External O.D.6.0±0.30 mm
  • SurfaceClean, Frap, Satiation
  • MaterialFR-PVC(complies RoHS)
  • ColorWhite RAL9003
  • Surface Printing
  • Letter Height2.5±0.2mm
  • ColorBlack
  • Print Error & Space≤±0.5%，1m

CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “CATE 6 UTP NETWORK CABLE 305M HIKVISION DS-1LN6U-W/CCA CCA,0.565 MM”

FAQs

What is the length of the network cable?
The network cable is 305 meters long, providing ample length for networking installations in various environments.
What is the category of the cable?
The cable is categorized as CAT6, indicating its performance standards for data transmission.
What type of conductor material does the cable use?
The cable features copper-clad aluminum (CCA) conductors, which are a cost-effective alternative to solid copper.
What is the diameter of the conductor?
The conductor diameter is 0.565 mm, providing a balance between flexibility and conductivity.
Is this cable suitable for indoor or outdoor installations?
It's essential to check the specifications and rating of the cable for its suitability for indoor or outdoor use. Typically, CAT6 UTP cables are designed for indoor use.
