CP Plus CP-UNR-4K2161-V2 16 Channel Network Video Recorder
46%
off

CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3

Original price was: ₹11,999.00.Current price is: ₹6,500.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Support each channel upto 8MP IP Camera; Max 64 Mbps incoming bandwidth.
  • Up to 4 channels video stream (analog channel) Perimeter Protection
  • AI Instastream, Instastream, H.265 dual-stream Video Compression
  • Up to 4 channels video stream (analog channel) SMD Plus
  • Support 1 SATA HDDs up to 16TB, 2 USB Ports
  • Up to 1 channel video stream (analog channel) human face recognition
  • IoT & POS functionalities
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

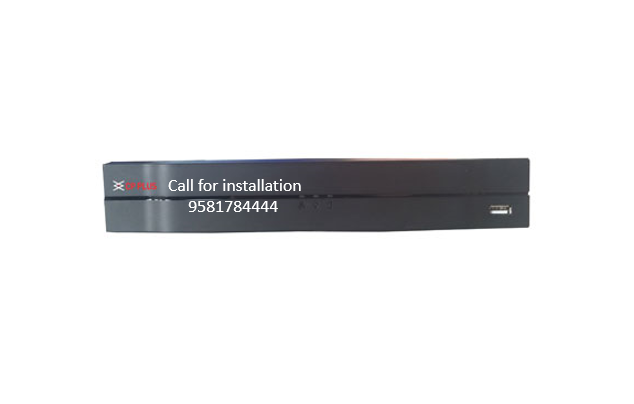

CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3

CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3

PRODUCTLINK: CP-UVR-0401L1-4KI3 (cpplusworld.com)

System Overview
This DVR has gathered momentum across the globe for its outstanding performance and premium recording quality as it can be applied in any situation for IP video surveillance. This Series of DVRs supports the input, recording and transmission functions. Along with that, this DVR also enjoys the help of a built-in deep learning module as this product adopts the video image that is structured on deep learning algorithms.

This DVR lets you achieve high-precision human face-recognition and efficient perimeter protection. This
product has been crafted to pay attention to what matters the most through applying deep learning artificial intelligence, which makes it fasten the event response time and helps in making the video more actionable.

Functions
Addnl. IP cameras support In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc. CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible.
KVMS Pro
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is released with the surveillance hardware and exclusively supports CP PLUS devices.
About CP PLUS
Smart Motion Detection (SMD Plus) CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only
when a person or vehicle is detected.

Processor Industrial-grade processor
Operating System Embedded LINUX
IP Camera Input 4+4 Ch.(analog channels are converted into IP channels) each channel up to 8MP. Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Two-way Talk Yes (share the same audio input with the first channel)
User Interface GUI
Video Output 1 HDMI, 1 VGA
Video Resolution VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub stream: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)
Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Video Compression AI Instastream, Instastream, H.265; H.264+; H.264
Video Display Split 1/4
Video Channel 4 channels
Audio Compression G.711A, G.711U, PCM
Audio Output 1 channel RCA, 4-channel BNC (Coaxial Audio)
Audio Input 1 channel, RCA
Motion Detection MD Zones: 396 (22 × 18)
Video Loss Supports
Smart Phone iPhone, iPad, Android Phone
Face Gender; age group; glasses; expressions; face mask; beard
Hard Disk 1 SATA port, up to 16TB.(The maximum HDD capacity varies with environment temperature.)
Database Management Up to 10 face databases and 20,000 images.
Bit Rate 32 kbps–6144 kbps
Recording Mode General, motion detection; intelligent; alarm; POS
Backup Mode USB Device/Network
Playback Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Ethernet 1 RJ-45 port (10/100Mbps)
Interface Ports 1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485
Protocols HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS,ONVIF 21.06, CGI Conformant, InstaOn
Power Supply DC 12V/2A
Power Consumption <7W (without HDD)
Working Temp -10°C to +55°C (+14°F to +131°F), 0–90% RH
Dimension 325.0 mm × 257.2 mm × 55.0 mm (W × D × H)
Weight 1.16 kg

CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “CP Plus 4 Channel 4K 5MP Support DVR CP-UVR-0401L1-4KI3”

FAQs

What is the maximum resolution supported by the DVR?
The CP Plus CP-UVR-0401L1-4KI3 DVR supports up to 4K resolution, providing ultra-high-definition video recording for enhanced surveillance. Additionally, it supports 5MP cameras for detailed imaging.
How many channels does the DVR support?
As indicated by the name, the CP-UVR-0401L1-4KI3 supports 4 channels for video input, allowing simultaneous recording from up to 4 cameras.
Is it compatible with CP Plus cameras only?
While optimized for use with CP Plus cameras, the CP-UVR-0401L1-4KI3 DVR may also be compatible with cameras from other manufacturers that adhere to standard video protocols.
