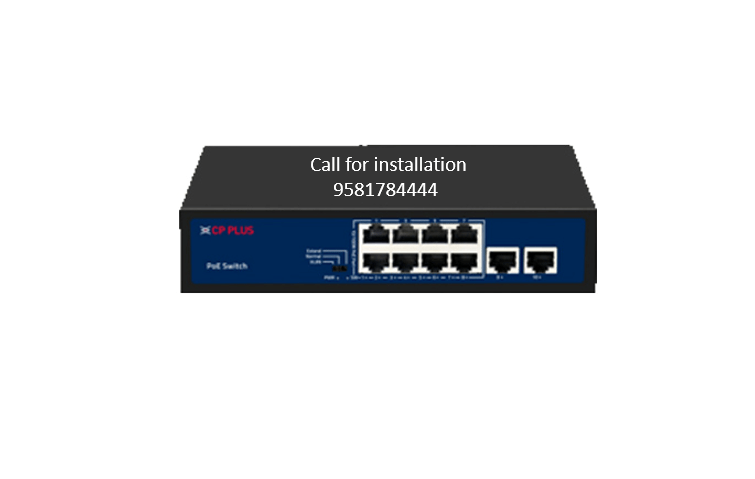

8Gigabit PoE Ports with 2Uplink PoE Switch CP Plus CP-DNW-GPU8G2-96-V4
60%
off

CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48

Original price was: ₹5,000.00.Current price is: ₹2,000.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48

  • 4, 100Mbps; RJ45 ports, Supports Max. 30W Output of Single PoE Port
  • Support IEEE802.3i/802.3u/802.3x
  • 2, 100Mbps, Transmission Distance: 0-100m
  • Easy and safe installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48

CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48

PRODUCTLINK: CP-DNW-HPU4H2-48 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Network Port 4, 100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~250m
Uplink Ports 2, 100Mbps, Transmission Distance: 0-100m
Switch Capacity 1.2 Gbps Full Duplex
Forwarding Rates 0.1488 Mbps/port
PoE Standard IEEE802.3i/802.3u/802.3x
PoE Power Supply 1/2(+),3/6(-)
Transmission Distance 0~250m
MAC Address List 2k
Lightning Protection n/a
PoE Power Budget 48W
ESD Protection Air discharge: 1.5KV Contact discharge: 1.5KV
Power Consumption <5W
LED light Light on: Powering Light off: No Power DIP Switch Light on – VLAN & Extend mode Light off – Normal mode
Power Source Input: 100-240V AC, 50/60Hz built-in power supply
Power Light Green light flash slowly: Searching for device Red light on: Powering but data disconnected Green light flash quickly: Data Transmitting
Working Temp -10°C ~50°C
Humidity 10% – 95%, non-condensing

CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “CP Plus 4 PoE Ports and 2 Uplink Ports CP-DNW-HPU4H2-48”

FAQs

What is the CP-DNW-HPU4H2-48 switch?
The CP-DNW-HPU4H2-48 is a network switch manufactured by CP Plus. It features 4 PoE (Power over Ethernet) ports and 2 uplink ports.
What are the PoE ports used for?
PoE ports allow both power and data to be transmitted over a single Ethernet cable, simplifying the installation process for PoE-compatible devices such as IP cameras, VoIP phones, and wireless access points.
What are the uplink ports for?
Uplink ports are typically used to connect the switch to the broader network infrastructure, such as routers, other switches, or servers.
