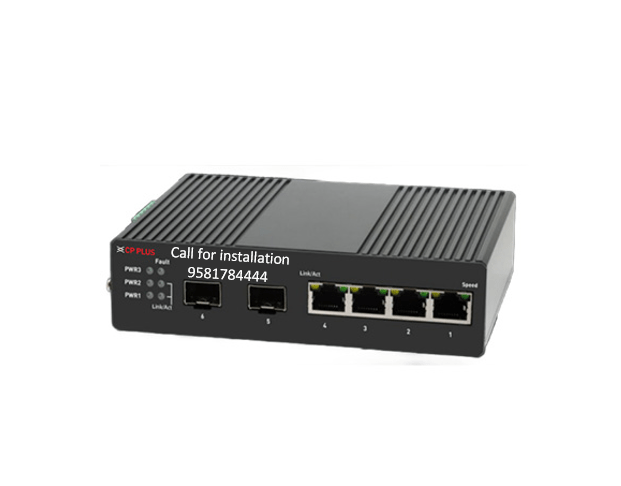

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12
50%
off

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12

Original price was: ₹9,999.00.Current price is: ₹4,999.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12

  • Supports IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3at, IEEE802.3af.
  • 4× gigabit PoE+ ports and 2× gigabit SFP provide high-speed connections.
  • 4× 802.3at/af-compliant PoE+ ports.
  • Power Budget: 120W.

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12

PRODUCTLINK: CP-ANW-GPM4F2T-N12 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Network Port 4 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1 x Console port
Network Standard IEEE 802.3i, IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3af, IEEE802.3at
PoE Ports Port 1-4 can support IEEE802.3af/at PoE standard
Ethernet Port Feature 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive
SFP Port Characteristic Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module
Optical Cable Multi mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter), 1000BASE-T: Cat5 or later UTP(≤100 meter)
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Packet Buffer 4.1Mbit
Power Supply Pin Only support 1/2 (+), 3/6 (-) 4-core power supply
Max/Average Power Port 30W per port
Power Input Dual DC 48~55V, Suitable Industrial Grade Power Supply
Power Consumption Standby: <10W (Not PoE); Full load: 130W (with PoE)
Mechanical Properties IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)
Lightning Protection Lightning protection: 6KV 8/20us;Protection level: IP40, IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge, IEC61000-4-3(RS):10V/m(80~1000MHz), IEC61000-4-4(EFT): power cable:±2kV; data cable:±2kV, IEC61000-4-5(Surge):power cable:CM±2kV/DM±1kV; data cable:±4kV, IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz), IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s, IEC61000-4-9(pulsed magnet field):1000A/m, IEC61000-4-10(damped oscillation):30A/m 1MHz, IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV, IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A, IEC61000-6-2(Common Industrial Standard)
Port Support IEEE802.3x flow control (full duplex), Support for broadcast storm suppression based on port rate, Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps, Support port temperature protection settings, Support port IEEE green Ethernet energy saving configuration
Layer 3 Function L2+ network management function, Support IPV4/IPV6 management, Static Routing
Port Aggregation Support LACP, Support static polymerization, Support the largest 8 aggregation groups; each aggregation group supports 8 ports
Resiliency Loop back detection; IEEE 802.1 AB for Link Layer Discovery Protocol (LLDP); EAPS/ERPS
Multicast Support IGMP Snooping V1/V2 and support 1024 multicast groups at most, Support the user’s quick departure mechanism, Support MLD Snooping V1/V2, Support multicast VLAN
Mirror Bi-directional traffic mirroring supporting the basic port
QoS Support Diff-Serv QoS, Each port supports 8 output queues, Support 802.1p/DSCP priority mapping, Support queue scheduling mechanism (SP, WRR, SP+WRR), Support priority tag Mark/Remark, Support stream based packet filtering, Support for stream based redirection, Support flow based speed limit, Strict Priority, Weighted Round Robin or Mixed Scheduling; Tail- Drop, WRED
Safety Characteristics Support user grading management and password protection, Support AAA&RADIUS authentication, Support the number of MAC address learning restrictions, Support MAC address black hole, Support IEEE802.1X authentication / centralized MAC address authentication, Support SSH 2.0 to provide secure passwords for user login, Support SSL to ensure data transmission security, Support port isolation, Support the speed limit function of ARP message, Support IP source address protection, Support ARP intrusion detection function, Support against DoS attacks, Support port broadcast message suppression, Support host data backup mechanism, Binding capabilities of IP+MAC+VLAN+ ports
ACL Support L2 to L4 packet filtering function, match the first 80 bytes of the message Provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL
Management And Maintenance Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration, Support WEB network management (HTTPS), Support FTP, TFTP, xmodem, SFTP file download management, Support SNMP V1/V2C/V3, Support one bond reduction, Support NTP clock Support system work log Support Ping detection ,Support cable state detection Support CPU instant utilization status view, Support link layer discovery protocol LLDP center, Command Line Interface (CLI) Telnet, SSHv2, RMON 1,2,3,9 Groups; One-to-One and Many-to-One Port Mirroring; LLDP and LLDP-MED; Syslog
DHCP Support DHCP Client, Support DHCP Snooping, DHCP option82, DHCP Relay
Jumbo Frame 12K Bytes
Indicator Link/Act (green) , Power Indicator: green
Operating Temperature -40 ~ +75°C
Operating Humidity 5%~90% RH Non condensing
Storage Temperature -40 ~ +85°C
Storage Humidity 5%~95% RH Non condensing

CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “CP Plus 4Port Gigabit and 2Port SFP PoE Switch CP-ANW-GPM4F2T-N12”

FAQs

What is the maximum power output per PoE port on the CP-ANW-GPM4F2T-N12 switch?
Each PoE port on the CP-ANW-GPM4F2T-N12 switch can deliver up to 30W of power, complying with the IEEE 802.3at PoE+ standard.
How many devices can be connected to the CP-ANW-GPM4F2T-N12 switch simultaneously?
The CP-ANW-GPM4F2T-N12 switch supports up to 6 devices simultaneously, with 4 Gigabit Ethernet PoE ports and 2 additional SFP ports for fiber connections.
What is the total PoE power budget of the CP-ANW-GPM4F2T-N12 switch?
The total PoE power budget of the CP-ANW-GPM4F2T-N12 switch is 120W.
