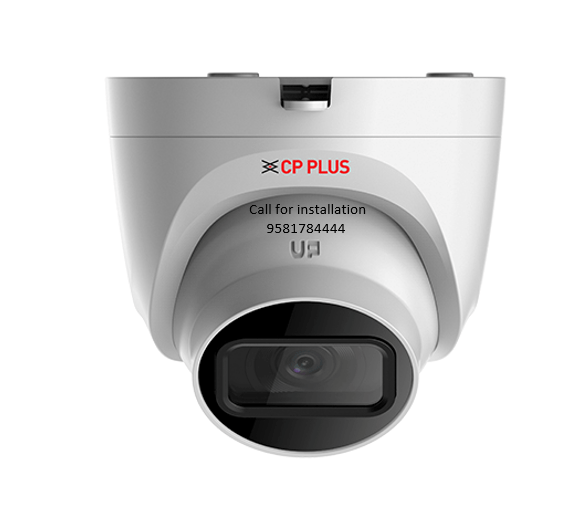

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3
66%
off

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3

Original price was: ₹4,599.00.Current price is: ₹1,560.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3

  • 1/2.7” 5MP CMOS Image Sensor (0.9407cm)
  • Max. 25fps@5MP (16:9 video output)
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 3.6mm fixed lens (2.8mm optional)
  • IR Range of 20 Mtrs.
  • OSD Menu, control over coaxial cable, 2D-DNR
  • CVI/CVBS/AHD/TVI Switchable

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3

PRODUCTLINK: CP-USC-DC51PL2-V3-5MP IR Dome Camera – 20Mtr. | Cp Plus | Cpplusworld.com

PRODUCT DESCRIPTION:

System Overview
Analog cameras can be advantageous in more ways than one – they are economical, especially for large scale setups, and are simple to install. However, one of the major downsides of earlier analog cameras was the image quality, which is critical in the present times. With subsequent technological upgrades over the years, HD resolution was introduced in analog CCTV systems. This served as a major breakthrough as high quality imagery was only available in IP system which was comparatively a costlier option.

Another challenge with analog systems was its compatibility constraint. Newer versions of analog cameras
would not pair up with older versions. CP PLUS introduced the revolutionary UNI + technology which supported all analog & HD video formats including CVB.

Functions
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.
Power protection
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions.

UNI+ technology
CP PLUS Analog HD cameras offer compatibility across all the available technologies – CVBS, TVI, HDCVI, AHD and HDx, making upgrading simple and hassle-free.
IR LED
Numerous IR LEDs provide detailed images even in very low light conditions. These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs.
Plug & Play
CP PLUS Analog HD cameras are simple to configure and install.

Image Sensor 1/2.7″ 5MP PS CMOS (0.9407cm)
Minimum Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance Auto / Manual
Gain Control (AGC) Auto / Manual
ICR Auto (ICR)/Manual
Lens 3.6mm (2.8mm optional)
Max Aperture F2.0
Iris Fixed
Lens Type Fixed lens/ Fixed Iris
Close Focus Distance 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
Mount Type M12
S/N Ratio More than 65dB
Privacy Mask Off / On (8 area, rectangle)
DORI Distance 2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)
Back Light Compensation BLC / HLC / DWDR
Video Streaming CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Angle of View 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
IR IR Range of 20 Mtr., Smart IR
OSD Multi-language
Casing Plastic
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH
Power Source 12V DC ±30%
Power Consumption Max 2.7W (12V DC, IR on)
Dimension Φ97.1 mm × 93.0 mm
Weight 0.09Kg.

CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “CP Plus 5MP IR Dome CCTV Camera CP-USC-DC51PL2-V3”

FAQs

What is the resolution of the CP-USC-DC51PL2-V3 camera?
The camera features a high-resolution 5-megapixel sensor, ensuring clear and detailed video footage.
