CP Plus CP-DNW-HPU8H2-96 10 Ports POE Switch with 2Uplink POE
61%
off

CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port

Original price was: ₹6,000.00.Current price is: ₹2,340.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

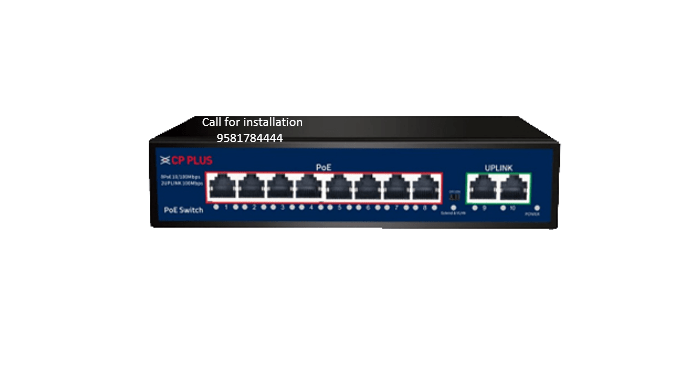

CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port

  • 8 port, 100Mbps, RJ45 ports; 30W Max. Output of Single PoE Port
  • Support IEEE802.3i/802.3u/802.3x
  • 2 Uplink port, 100Mbps with Transmission distance of 0-100m
  • Easy and safe installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port

CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port

PRODUCTLINK: CP-DNW-HP8H2-96-V2 (cpplusworld.com)

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Network Port 10 (8+2) Port
Switch Capacity 2 Gbps Full duplex
Uplink Ports 2 Uplink Port, 100Mbps with Transmission Distance of 0-100m
Transmission Distance 0-100m/100Mbps, Max. 250m/10Mbps via Cat.5e or more under Extend mode
Forwarding Rates 0.1488 Mpps/Port
ESD Protection Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2
Ethernet Port Light Green Light (Quick Flash- Data Transmitting, Slow Flash- Searching For Device), Red LightPowering but data disconnected
LED light Light on – VLAN/Extended mode, Light Off – Normal Mode
Lightning Protection Support
MAC Address List 2K
Packet Buffer n/a
PoE Ports 8 Port with 100Mbps, RJ45 ports, 30W Max. Output of a Single PoE Port with Transmission Distance of 0 –250m
PoE Power Budget 96W
PoE Power Supply 1/2(+),3/6(-)
Power Consumption <5W
Operating Temperature -10°C ~ 50°C
Operating Humidity 10%-95% , non-condensing

CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “CP Plus 8 Port PoE Switch CP-DNW-HP8H2-96-V2 with 2Uplink Port”

FAQs

What is the total power budget of the CP-DNW-HP8H2-96-V2 switch?
The CP-DNW-HP8H2-96-V2 switch has a total power budget of 96 watts for the 8 PoE ports.
What are the uplink port speeds for this switch?
The two uplink ports on the CP-DNW-HP8H2-96-V2 switch are 10/100 Mbps Ethernet ports.
Does this switch support VLAN configuration?
Yes, the CP-DNW-HP8H2-96-V2 switch supports VLAN configuration to enhance network segmentation and security.
