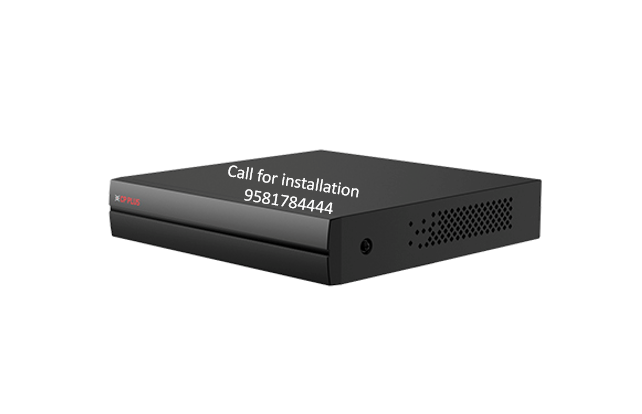

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4
54%
off

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4

Original price was: ₹8,999.00.Current price is: ₹4,100.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth
  • Support 1 SATA HDD up to 6TB, 2 USB Ports
  • 1 HDMI / 1 VGA Simultaneous Video Output
  • Instastream/H.265/H.264+/H.264 video compression
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4

PRODUCTLINK: CP-UVR-0801E1-CV4 (cpplusworld.com)

PRODUCT DESCRIPTION:

SYSTEM OVERVIEW

This Series has gathered momentum across the globe for its outstanding performance and premium recording quality as it can be applied in any situation for IP video surveillance. This Series supports the input, recording and transmission functions. Along with that, this DVR also enjoys the help of a built-in deep learning module as this product adopts the video image that is structured on deep learning algorithms. This DVR lets you achieve high-precision human face recognition and efficient perimeter protection.

This product has been crafted to pay attention to what matters the most through applying deep learning artificial intelligence, which makes it fasten the event response time and helps in making the video more actionable.

FUNCTIONS

Intrateam
Interstream is the latest innovation among the standard video compression designs. This technology is beneficial for minimizing storage costs and provides big savings on resolution and the rate of frame in the video through the use of Intelligent Region Perception to detect motion in each frame.

Live viewing
The benefits of high resolution video recording are numerous they not only provide more details of an image but also increase the credibility of the video as evidence. CP PLUS (Orange/ Indigo/ Red) DVRs offer 5MP HD resolution (2560 x 1920) for live viewing with enhanced details and image clarity.

Processor Embedded processor
IP Camera Input 8+2 channels, each channel up to 6MP
Operating System Embedded LINUX
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Video Output 1 HDMI, 1 VGA
Video Input 8 channel, BNC
Video Compression Instastream/H.265/H.264+/H.264
Video Display Split 1/4/8/9
Video Loss supports
Video Recording Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF(1~25/30fps); Sub stream: CIF/QCIF (1~7fps)
Video Resolution 1920×1080, 1280×1024, 1280×720, 1024×76
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Bit Rate 32 kbps–4096 kbps per channel
Audio Compression G.711A, G.711U, PCM
Audio Input 1 channel, RCA
Audio Output 1 channel, RCA
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channe
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post record: 10~300 sec
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Motion Detection Support
Playback 1/4/9 Ch.
Camera Blank Support
Recording Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Backup Mode USB Device
Hard Disk 1 SATA port, up to 6TB capacity
User Account 128 users
Smart Phone iPhone, iPad, Android Phone
Ethernet 1 RJ-45 port (100Mbps)
Interface Ports 2 USB Ports (USB 2.0)
Protocols HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant
Power Supply DC12V/1.5A
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Power Consumption <10W (without HDD)
Dimension 198 mm × 202.9 mm × 41.5 mm
Working Temperature -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% (RH)
User Access 128 users
Storage Temperature -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% (RH)
Net Weight 0.55kg (without HDD)

CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “CP Plus 8Channel 1080N Digital Video Recorder CP-UVR-0801E1-CV4”

FAQs

What is the maximum resolution supported by the DVR?
The CP-UVR-0801E1-CV4 DVR supports up to 1080N resolution, providing high-definition video recording for enhanced surveillance.
How many channels does the DVR support?
As indicated by the name, the CP-UVR-0801E1-CV4 supports 8 channels for video input, allowing simultaneous recording from up to 8 cameras.
Is it compatible with CP Plus cameras only?
While optimized for use with CP Plus cameras, the CP-UVR-0801E1-CV4 DVR may also be compatible with cameras from other manufacturers that adhere to standard video protocols.
