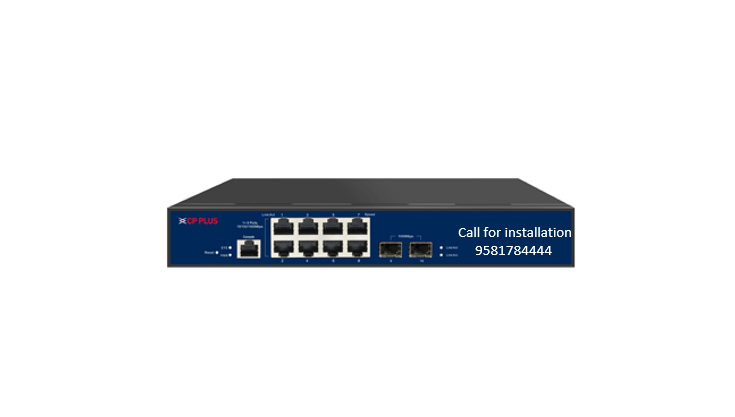

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch
50%
off

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch

Original price was: ₹17,999.00.Current price is: ₹8,950.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch

  • Supports IEEE 802.3i IEEE 802.3u IEEE802.3ab IEEE802.3z IEEE802.3x IEEE802.3at IEEE802.3af IEEE802.3az
  • 8 x Gigabit PoE+ Ports and 2 x Gigabit SFP
  • Supports MAC address auto learning and auto aging
  • Store and forward mode operates
  • Supports PoE power up to 30W for each PoE port, all power up to 120W.
  • LED indicators for monitoring power, link/activity
  • Support QoS, port mirroring, link aggregation protocol
  • 19 inches full metal iron shell and internal power adapter design, suitable for rack installation

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch

PRODUCTLINK: CP-ANW-GPM8F2-N12-8 Port Gigabit + 2 Port Gigabit SFP Layer 2 Managed PoE Switch | Cp Plus | Cpplusworld.com

PRODUCT DESCRIPTION:

System Overview
As most of the CP PLUS products have been integrated with the Power of Ethernet technology which makes troubleshooting easier in case any errors occur. This can be done with the help of a PoE Switch
makes increases reliability rapidly.
Functions
Supports Full/Half Duplex Mode
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,
enabling bi-directional network data transmissions to save time and money.

Better Connectivity
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices.
Switching Performance
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

LED light Power, System (Per Device); Link/Activity (Per Port)
PoE Ports 8 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1 x Console port
PoE Standard IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3af, IEEE802.3at
Packet Forwarding Rate 41.67Mpps
MAC Address List 8K
Power Source 100~240VAC,50/60HZ, 120W Power Consumption
Working Temp -20°C to 55°C
Humidity 10%~90% (Non-condensing)
Dimension 230mm(W) x 150mm(D) x 44.5mm(H)

CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “CP Plus CP-ANW-GPM8F2-N12 8Port Gigabit and 2Port Gigabit SFP Switch”

FAQs

What are the main features of the CP Plus CP-ANW-GPM8F2-N12 switch?
The CP Plus CP-ANW-GPM8F2-N12 switch offers 8 Gigabit Ethernet ports and 2 Gigabit SFP ports. It supports advanced features such as VLAN, QoS, and link aggregation, making it suitable for high-performance network environments.
What is the maximum power budget for PoE devices on this switch?
This model does not support Power over Ethernet (PoE). It provides high-speed data transmission but requires separate power sources for connected devices.
How can I configure VLANs on the CP-ANW-GPM8F2-N12 switch?
VLANs can be configured using the switch's web-based management interface. Log in to the switch's management interface via your web browser, navigate to the VLAN settings, and configure the desired VLANs.
