System Overview
Analog cameras can be advantageous in more ways than one – they are economical, especially for large scale setups, and are simple to install. However, one of the major downsides of earlier analog cameras was the image quality, which is critical in the present times. With subsequent technological upgrades over the years, HD resolution was introduced in analog CCTV systems. This served as a major breakthrough as high quality imagery was only available in IP system which was comparatively a costlier option.

Another challenge with analog systems was its compatibility constraint. Newer versions of analog cameras
would not pair up with older versions. CP PLUS introduced the revolutionary UNI + technology which supported all analog & HD video formats including CVB.

Functions
True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.
Power protection
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions.

UNI+ technology
CP PLUS Analog HD cameras offer compatibility across all the available technologies – CVBS, TVI, HDCVI, AHD and HDx, making upgrading simple and hassle-free.
IR LED
Numerous IR LEDs provide detailed images even in very low light conditions. These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs.
Plug & Play
CP PLUS Analog HD cameras are simple to configure and install.

Image Sensor	1/2.7″ 5MP Progressive Scan CMOS (0.9407cm)
Minimum Illumination	0.02 Lux/F2.0, 30IRE, 0 Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	AGC
ICR	Auto (ICR)/Manual
Lens	3.6mm (2.8mm optional)
Max Aperture	F2.0
Iris	Fixed
Lens Type	Fixed lens/ Fixed Iris
Resolution	5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Close Focus Distance	2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
Mount Type	M12
S/N Ratio	More than 65dB
Privacy Mask	Off / On (8 area, rectangle)
DORI Distance	2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)
Back Light Compensation	BLC / HLC / DWDR
OSD	Multi-language
Video Streaming	CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Mirror	Off/On
Angle of View	3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
IR	IR Range of 20 Mtr., Smart IR
Casing	Plastic
Operating Temperature	-40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH
Power Source	12V DC ±30%
Storage Temperature	-40°C to +55°C (–40°F to +131°F) /Less than 95% RH
Power Consumption	Max 2.7W (12V DC, IR on)
Dimension	φ85.4 mm × 68.8 mm
Weight	0.09Kg

CP Plus CP-USC-DC51PL2-V5 5MP IR Dome CCTV Camera IR 20M, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera CP Plus Camera Dahua IP Camera Wireless 360 camera Human detection camera Dlink Ptz camera Hawkvision IP Bullet camera Honeywell IP down camera Biometric attendance Door access control Timewatch Glass door access control Essl Door Access Biomax Biometric Automatic school bell School bell Vamaa Digital board DG board Interactive white panel Evota Interactive 4K flat panel Infrared Interactive white board Cornea Smart classroom equipment School solutions Audio broadcast system Two way audio broadcast School audio broadcast Benq Projector for classroom LG theatre projector CCTV monitors Surveillance hard disk Seagate CCTV hard disk Money counting machine POE switch Parking solution Video door phone Boom barriers Flap barriers X-ray baggage scanner Smart door lock School accessories Intercom Fire and safety

Reviews

There are no reviews yet.

Be the first to review “CP Plus CP-USC-DC51PL2-V5 5MP IR Dome CCTV Camera IR 20M”

You must be logged in to post a review.

FAQs

What is the resolution of the CP-USC-DC51PL2-V5 camera?

The camera features a high-resolution 5 megapixels, ensuring clear and detailed video footage.

Does the camera support night vision?

Yes, the camera is equipped with infrared (IR) LEDs for night vision capabilities, allowing it to capture clear images even in low-light or no-light conditions.

What is the maximum IR distance of the camera?

The camera has an IR range of up to 20 meters, ensuring visibility over a considerable distance in dark environments.

SKU: CP447HD Categories: 5MP HD, CCTV CAMERAS, CP PLUS Tags: CP Plus 5MP HD Dome CCTV Camera, CP Plus 5MP Security Camera, Dome CCTV CAmera 5MP

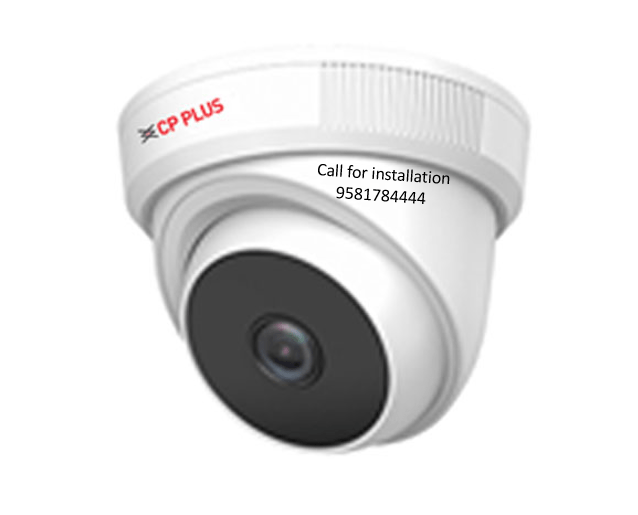

CP Plus CP-USC-DC51PL2-V5 5MP IR Dome CCTV Camera IR 20M
