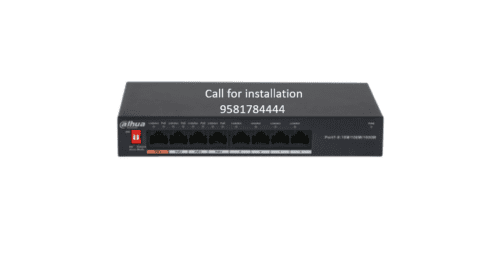

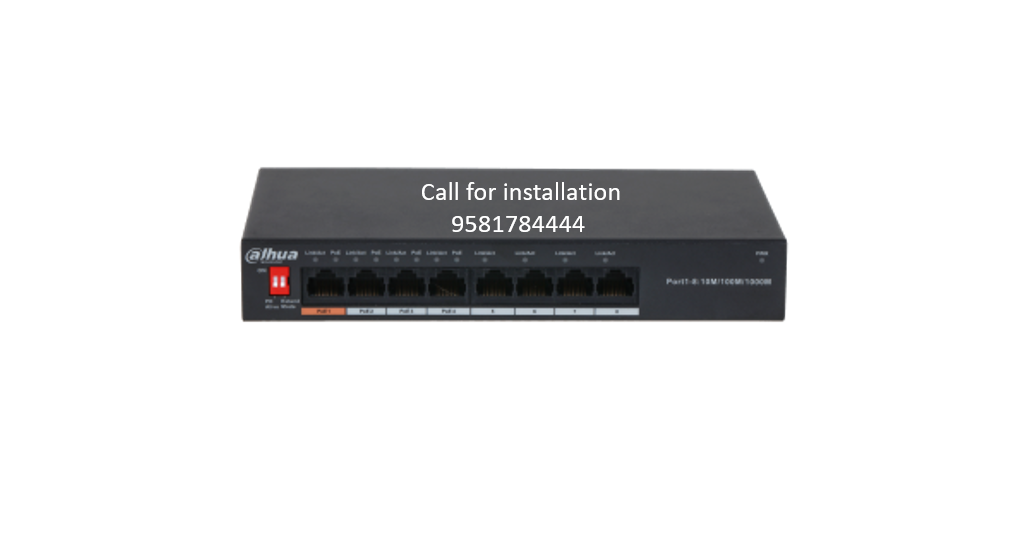

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96
53%
off

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96

Original price was: ₹19,999.00.Current price is: ₹9,300.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96

> Intelligent PoE

> 8-pin assignment PoE power supply

> Long distance PoE

> PoE watchdog

> BT 90W

> All-giga ports

> Wide working temperature

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96

PRODUCTLINK: PFS3010-8GT-96 (dahuasecurity.com)

Technical Specifications

Ordering Information
Type Model Description
PoE Swtich DH-PFS3010-8GT-96 Dahua 10-Port Unmanaged Desktop Switch with 8 Port PoE
PFS3010-8GT-96 10-Port Unmanaged Desktop Switch with 8 Port PoE
Specification
Hardware
Data Transmission Port Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
Power Supply 48 V – 57 V DC
Operaing Temperature –10 °C to +55 °C (+14°F to +131°F)
Operating Humidity 5% – 95% (RH)
Storage Temperature –20 °C to +70 °C (–4°F to +158°F)
Storage Humidity 5% – 95%(RH)
Power Consumption Idling: 3 W
Full load: 96 W
Performance
Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Packet Buffer Memory 1.5 Mbit
MAC Table Size 4K
Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE
PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power 96 W
Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE 250 m long distance PoE transmission
General
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Thunder-proof Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.50 kg (1.10 lb)
Gross Weight 1.32 kg (2.91 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″)
Transmission Performance:
Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90 W
100 71.3 1000
150 62 10
200 51 10
250 40 10
Hi-PoE 60 W
100 53 1000
150 50 10
200 47 10
250 37 10
IEEE802.3at 30 W
100 25.5 1000
150 25.5 10
200 25.5 10
250 25.5 10

Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety





Reviews

There are no reviews yet.

Be the first to review “Dahua 10Port Unmanaged Desktop Switch with 8Port PoE DH-PFS3010-8GT-96”

FAQs

What is the Dahua DH-PFS3010-8GT-96 switch?
The Dahua DH-PFS3010-8GT-96 is an unmanaged desktop switch featuring 10 ports, with 8 of them supporting Power over Ethernet (PoE). It provides both power and data connectivity for various network devices.
How many PoE ports does this switch have?
This switch has 8 PoE ports, enabling it to power PoE-compatible devices such as IP cameras, VoIP phones, and wireless access points without the need for additional power sources.
What is the total power budget for the PoE ports?
The power budget varies depending on the model and specifications of the switch. It's essential to refer to the datasheet or user manual for accurate information about the power budget of the DH-PFS3010-8GT-96 switch.
Can the PoE ports be managed individually?
No, the DH-PFS3010-8GT-96 is an unmanaged switch, meaning that the PoE ports cannot be individually managed. Each PoE port typically provides power automatically to connected devices without requiring manual configuration.
