DAHUA 32CHANNEL DVR 2MP CAMERA SUPPORT DH-XVR4232AN-X PENTA-BRID 2 SATA WIZSENCE
53%
off

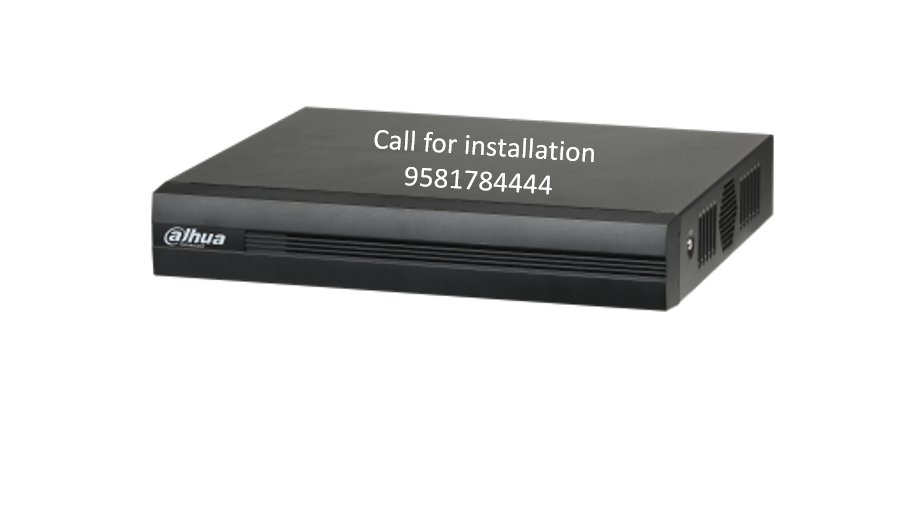

DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID

Original price was: ₹24,000.00.Current price is: ₹11,299.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID

· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 24 channels IP camera inputs, each channel up to 6MP;
Max 96Mbps incoming bandwidth
· Long transmission distance over coax cable
· Supports 1 SATA HDD, up to 6TB
· Smart Search and Intelligent Video System

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID

DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID

PRODUCTLINK: XVR1B16H_Datasheet_20181227.pdf (dahuasecurity.com)

Technical Specification
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 16 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 16+8CH, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main Stream: the 1st & 2nd channels 5M-N(1~10fps);
other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub stream:CIF/QCIF (1~15fps)
Video Bit Rate 32Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel

DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “DAHUA 16CHANNEL DVR UP-TO 5MP CAMERA SUPPORT DH-XVR4B16H PENTA-BRID”

FAQs

What is the maximum resolution supported by the Dahua DH-XVR4B16H DVR?
The Dahua DH-XVR4B16H DVR supports a maximum resolution of up to 5 megapixels (5MP) for video recording.
What does "Penta-Brid" mean in the DVR's name?
Penta-Brid refers to the capability of the DVR to support multiple video signal formats, including HDCVI, AHD, TVI, CVBS, and IP cameras, providing flexibility for various surveillance setups.
How many channels does the Dahua DH-XVR4B16H DVR support?
This DVR supports 16 channels, allowing you to connect up to 16 cameras for simultaneous monitoring and recording.
Does the DVR support up to 5MP cameras?
Yes, the Dahua DH-XVR4B16H DVR supports cameras with resolutions of up to 5 megapixels (5MP), allowing for high-definition video recording.
