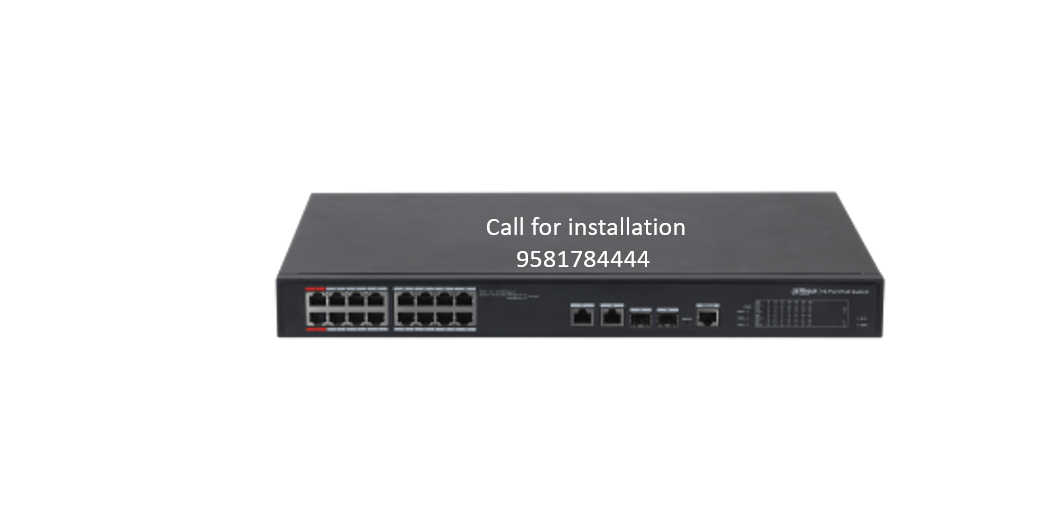

Dahua 16port 100Mbps and 2port Gigabit Managed PoE Switch DH-PFS4218-16ET-190

> Intelligent PoE

> Red port supports 90W IEEE802.3bt

> Web management with friendly interface and easy operation

> 250 m long distance PoE transmission

> PoE watchdog

> Plug and play

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

Dahua 16port 100Mbps and 2port Gigabit Managed PoE Switch DH-PFS4218-16ET-190

Dahua 16port 100Mbps and 2port Gigabit Managed PoE Switch DH-PFS4218-16ET-190

PRODUCTLINK: PFS4218-16ET-190 | Dahua Technology (dahuasecurity.com)

Performance
Layer Layer 2
Managed Yes
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 5.36 Mpps
Packet Buffer Memory 2.75 Mbit
MAC Table Size 4K
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;

IEEE 802.3z
Hardware Feature
Standard Power Supply Yes
PoE Yes
Ethernet Port 16
Optical Port 2
Ethernet Port Rate 100 Mbps
Optical Port Rate 1 Gbps
Number of Bussiness Card Slots Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
Debugging Console × 1
Power Supply 100V–240V AC
Operating Temperature –10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity 10% RH–90% RH
Power Consumption Idling: 10W
Full load: 190W
PoE
PoE Standard IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 190W
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission 250 m long-distance power supply
Function
Spanning Tree Protocol IEEE 802.1d (STP); 802.1w (RSTP)
VLAN IEEE802.1q Standard VLAN
Flow Control Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation Static; LACP
Port Mirroring One-to-one; multiple-to-one
Multicast GMP snooping based on port
DHCP DHCP client
Security Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS High and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESD Air discharge: 8kV
Contact discharge: 6kV
Thunder-proof Common mode: 4kV
Differential mode: 2kV
Dimensions 440 mm × 300 mm × 44 mm (17.32″ × 11.81″ × 1.73″) (L × W × H)
Packaging Dimensions Packing box: 527 mm × 412 mm × 110 mm (20.75″ × 16.22″ × 4.33″) (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99″ × 21.61″ × 17.56″) (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90 W
100 71.3 100
150 62 10
200 51 10
250 40 10
Hi-PoE 60 W
100 53 100
150 50 10
200 47 10
250 37 10
IEEE802.3at 30 W
100 25.5 100
150 25.5 10
200 25.5 10
250 25.5 10

Dahua 16port 100Mbps and 2port Gigabit Managed PoE Switch DH-PFS4218-16ET-190, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation
