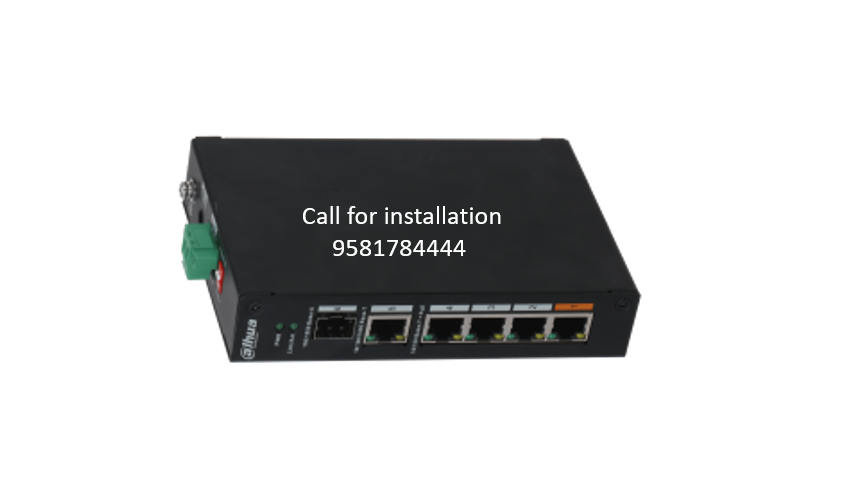

Dahua 4 Port POE Switch DH-PFS3106-4ET-60
50%
off

Dahua 4 Port POE Switch DH-PFS3106-4ET-60

Original price was: ₹9,999.00.Current price is: ₹4,999.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

Dahua 4 Port POE Switch DH-PFS3106-4ET-60

> Eight-Pin assignment PoE power supply

> Intelligent PoE

> Hi-PoE 60 W (Orange Port)

> PoE watchdog

> 250 m long distance PoE transmission

> Wide operating temperature: –30 °C to +65 °C (–22 °F to +149 °F)

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

Dahua 4 Port POE Switch DH-PFS3106-4ET-60

Dahua 4 Port POE Switch DH-PFS3106-4ET-60

PRODUCTLINK: PFS3106-4ET-60 (dahuasecurity.com)

Technical Specifications

Hardware
Ethernet Port 4
Optical Port 1
Ethernet Port Speed 100 Mbps
Data Transmission Port Port 1–4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink)
Port 6: 1 × SFP 100/1000 Mbps (Uplink)
Power Supply 53 VDC
Operaing Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 5%–95% (RH)
Storage Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Humidity 5%–95% (RH)
Power Consumption Idling: 2.5 W
Full load: 60 W
Performance
Capacity 6.80 Gbps
Packet Forwarding Rate 3.57 Mpps
Packet Buffer Memory 1 Mbit
MAC Table Size 8K
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z
PoE
PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power 60 W
Power Consumption Management Yes
PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE 250 m long distance PoE transmission
General
Statics Protection Air discharge: 15 kV
Contact discharge: 8 kV
Thunder-proof Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.45 kg (0.99 lb)
Gross Weight 1.10 kg (2.43 lb)
Product Dimensions 150 mm × 100 mm × 30 mm (5.91″ × 3.94″ × 1.18″) (L × W × H)
Packing Dimensions Packing box: 270 mm × 240 mm × 75 mm (10.63″ × 9.45″ × 2.95″) (L × W × H)
Protective box: 544 mm × 253 mm × 331 mm (21.42″ × 9.96″ × 13.03″) (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90 W
100 71.3 100
150 62 10
200 51 10
250 40 10
Hi-PoE 60 W
100 53 100
150 50 10
200 47 10
250 37 10
IEEE802.3at 30 W
100 25.5 100
150 25.5 10
200 25.5 10
250 25.5 10

Dahua 4 Port POE Switch DH-PFS3106-4ET-60, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation.

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “Dahua 4 Port POE Switch DH-PFS3106-4ET-60”

FAQs

What is the Dahua DH-PFS3106-4ET-60 switch?
The Dahua DH-PFS3106-4ET-60 is a compact 4-port Power over Ethernet (PoE) switch designed to provide power and data connectivity for PoE-enabled devices in small-scale network setups.
How many PoE ports does this switch have?
This switch features 4 PoE ports, allowing it to supply power to compatible devices such as IP cameras, VoIP phones, and wireless access points.
What is the total power budget for the PoE ports?
The power budget varies depending on the model and specifications of the switch. It's essential to refer to the datasheet or user manual for accurate information about the power budget of the DH-PFS3106-4ET-60 switch.
Can the PoE ports be managed individually?
Generally, unmanaged switches like the DH-PFS3106-4ET-60 do not offer individual management of PoE ports. Each PoE port typically provides power automatically to connected devices without requiring manual configuration.
