DAHUA 8CHANNEL DVR 2MP WIZSENCE 1HDD DH-XVR4B08-I AI-CORDING TECHNOLOGY
58%
off

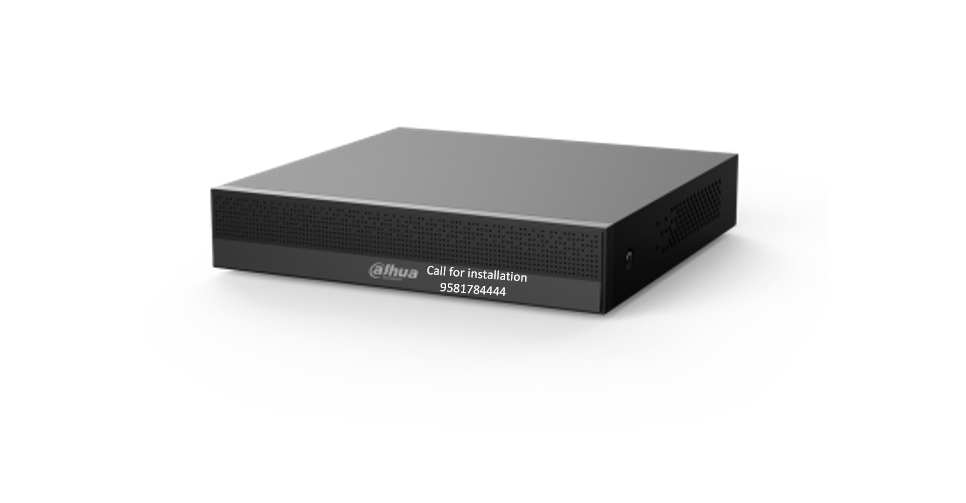

DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA

Original price was: ₹9,999.00.Current price is: ₹4,199.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB

1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA

DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA

PRODUCTLINK:

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4 channels, BNC

HDCVI Camera

1080p@ 25/30 fps, 720p@ 25/30/50/60 fps

AHD Camera

1080P@25/30, 720P@25/30fps

TVI Camera

1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4CH: 4+1, each channel up to 2MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.265+/H.265/H.264+/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream;

All channels 1080N/720P/960H/D1/CIF/(1`25/30 fps)

Sub Stream

CIF (1`15 fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled:

4CH: 1/4

When IP extension mode enabled:

4CH: 1/4/6

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

4CH: 1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(Without HDD)

< 7 W

Construction

Dimensions

Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)

Net Weight

(without HDD)

0.54kg (1.19lb)

0.56kg (1.23lb)

Gross Weight

0.93kg (2.05lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “DAHUA 4CHANNEL PENTA-BRID 2MP 1080P/720P DVR DH-XVR4B04-V2 1 SATA”

FAQs

What is the resolution supported by the Dahua DH-XVR4B04-V2 DVR?
The Dahua DH-XVR4B04-V2 DVR supports a resolution of up to 2 megapixels (1080P/720P) for high-definition video recording.
What is the meaning of Penta-Brid in the DVR's name?
Penta-Brid refers to the capability of the DVR to support multiple video signal formats, including HDCVI, AHD, TVI, CVBS, and IP cameras, providing flexibility for various surveillance setups.
How many channels does the Dahua DH-XVR4B04-V2 DVR support?
This DVR supports 4 channels, allowing you to connect up to 4 cameras for simultaneous monitoring and recording.
Does the DVR support SATA hard drives for storage?
Yes, the Dahua DH-XVR4B04-V2 DVR supports up to 1 SATA hard drive, allowing you to store recorded footage locally for future playback and analysis.
