4Port POE and 6Port Unmanaged Desktop Switch Dahua DH-PFS3006-4GT-60
53%
off

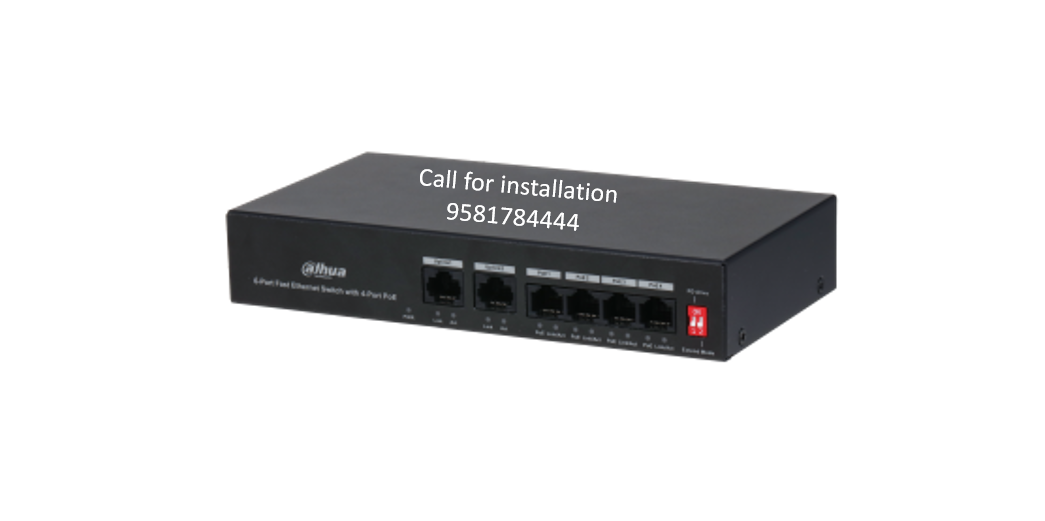

Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36

Original price was: ₹6,000.00.Current price is: ₹2,800.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36

> Support four 10/100M PoE power supply ports, and two 10/100M uplink ports ·

> Support 802.3af and 802.3at standards

> OperatingTemperature: -10°C to +55°C

> Support 250 m long distance PoE tansmission

> Support PoE watchdog

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36

Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36

PRODUCTLINK: https://www.dahuasecurity.com/in/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3006-4ET-36

Hardware

Data Transmission Port

4 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100Mbps Base-TX

Power Supply

AC100–AC240V

Operating Temperature

-10°C to +55°C (-14°F–131°F)

Operating Humidity

10%–90%

Power Consumption

Idling: 0.5W
Full load: 36W

PoE

PoE Budget

Port1-4 ≤30W, whole PoE budget ≤36W

PoE Standard

IEEE802.3af, IEEE802.3at

PoE Pin Assignment

PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)

Performance

Switching Capacity

1.2 Gbps

Packet Forwarding Rate

0.89 Mpps

MAC Table Size

2 K

Jumbo Frame

2048 byte

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 6kV
Differential mode: 4kV

Net Weight

0.56 kg (1.23 lb)

Gross Weight

1.11 kg (2.15 lb)

Product Dimensions
(W × L × H)

194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″)

Packaging Dimensions
(W × L × H)

Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″)

Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)

Package

10 devices in one package

Certifications

CE: EN60950;
FCC

Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “Dahua 4Port POE with 6 Port Fast Ethernet Switch DH-PFS3006-4ET-36”

FAQs

What is the purpose of the DH-PFS3006-4ET-36 switch?
The DH-PFS3006-4ET-36 switch is designed to provide both power and network connectivity to Ethernet-enabled devices in a compact and cost-effective manner.
How many ports does the switch have, and how many support PoE?
This switch has a total of 10 ports, with 4 of them supporting Power over Ethernet (PoE) for powering compatible devices.
What is Power over Ethernet (PoE)?
PoE allows the switch to transmit both data and power over a single Ethernet cable, simplifying installation and reducing the need for additional power outlets.
