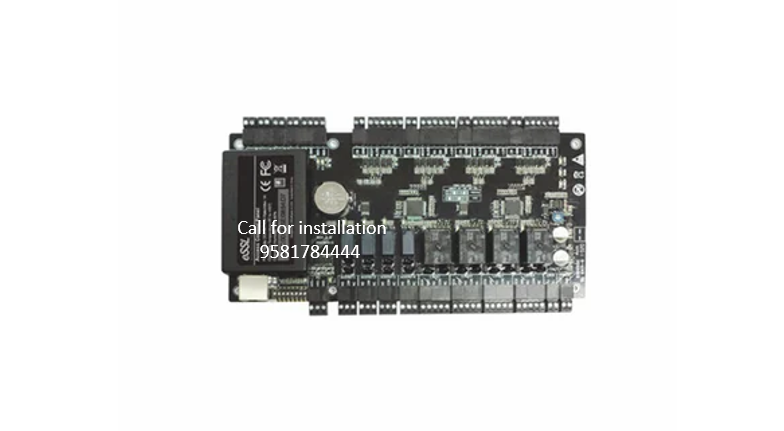

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control
58%
off

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control

Original price was: ₹39,999.00.Current price is: ₹16,890.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control

Features:
User Capacity: 30000,
Event Buffer: 100000 ,
CPU: 32bit MIPS CPU,
RAM: 32MB,
Flash Memory: 128 MB,
Power/Current: DC 9.6V-14.4V, Rated Max. 1A.

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control

PRODUCTLINK: https://www.esslsecurity.com/doorcontroller/c3-400

TECHNICAL SPECIFICATIONS

  • User Capacity: 30000
  • Event Buffer: 100000
  • CPU: 32bit MIPS CPU
  • RAM: 32MB
  • Flash Memory: 128 MB
  • Power/Current: DC 9.6V-14.4V, Rated Max. 1A
  • Communication: RS485, TCP/IP
  • Operating Temperature: 0°C – 55°C
  • Operating Humidity: 10% to 80%
  • Relative Humidity Non-Condensing
  • Dimension (mm): 218(W) x 106(H) (Single board) 345(W) x 275(H) x 70(D) (With power supply and metal box)
  • Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
  • Support : Proximity /Mifare / HID Readers Numbers of readers supported : 12 (8 RS-485 Reader,4 26-bit wiegand reader)
  • Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader
  • Number of Inputs : 12( 4 Exit Device, 4 Door Status, 4 AUX)
  • Number of Outputs :8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)

FEATURES

  • 256 time Zones, 256 access levels
  • Anti-passback function
  • Interlock function , Linkage function
  • Multi-Card Opening function, Remote door opening and closing
  • Real-Time monitoring Via Web browser
  • 4 auxiliary input may be connected to infrared body detectors,
  • fire alarms, smoke detectors etc.
  • 4 auxiliary output may be connected to alarms, cameras,door bells etc.

SOFTWARE AND DATABASE SUPPORTED

  • Access Security System 3.5 (Desktop Version)
  • Database Type:- MS Access / MS SQL

ESSL C3-400 B Advansd Multi Door Controller 4 Door Control, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “ESSL C3-400 B Advansd Multi Door Controller 4 Door Control”

FAQs

What is the ESSL C3-400 B Advanced Multi Door Controller?
The ESSL C3-400 B is an advanced access control system designed to manage access to multiple doors within a building or facility. It provides centralized control and monitoring of access points, enhancing security and efficiency.
How does the ESSL C3-400 B Multi Door Controller work?
The C3-400 B controls access to multiple doors by processing input signals from various access control devices such as card readers, biometric scanners, and electric locks. It verifies user credentials and grants or denies access based on predefined permissions.
What are the main features of the ESSL C3-400 B Multi Door Controller?
Centralized control of up to four doors Support for various access control technologies including RFID, biometrics, and PIN codes Real-time monitoring and reporting of access events Integration with other security systems such as CCTV and alarms Flexible configuration options for different access scenarios Built-in backup battery for uninterrupted operation during power outages
Is the ESSL C3-400 B suitable for small or large-scale installations?
The ESSL C3-400 B is suitable for both small and large-scale installations. It can be used in single-site applications such as small offices or retail stores, as well as multi-site installations such as corporate offices or government buildings.
