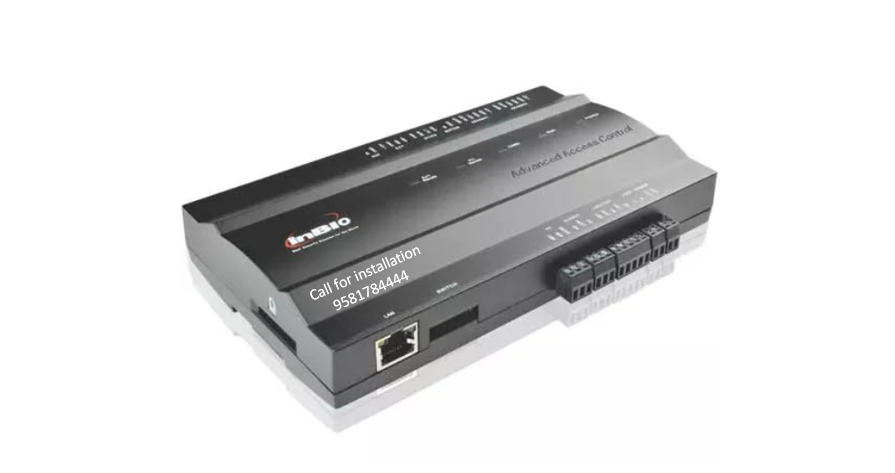

Essl INBIO460 PCB Multi Door Access Controller 4Door Controller

Name: Essl INBIO460 PCB Multi Door Access Controller 4Door Controller
SKU: EL59
Price: 18880 INR
Availability: InStock

Original price was: ₹40,000.00.Current price is: ₹18,880.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

Features:
CPU : 32bit MIPS CPU,
RAM : 32MB, Flash Memory : 128 MB,
Fingerprint Capacity : 3000,
Card Capacity : 30000,
Event buffer : 100000.

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

Essl INBIO460 PCB Multi Door Access Controller 4Door Controller

product link: https://www.esslsecurity.com/doorcontroller/inbio460

TECHNICAL SPECIFICATIONS

CPU : 32bit MIPS CPU
RAM : 32MB, Flash Memory : 128 MB
Fingerprint Capacity : 3000
Card Capacity : 30000
Event buffer : 100000
Power / Current : 12V +5A for Controller
Max 1A Wiegand Reader Port : 4ea (26/34 bit Wiegand, 4/8bit for PIN RS485)
Reader Port : 1no. extended RS485 Port
Communication : RS485 , TCP/IP
Baud Rate : 38,400bps (recommended) / 9600bps ,19,200 bps ,57,600 bps (selectable)
Input Port : 8ea (exit button #1 ,exit button #2 ,button #3 ,button #4 ,Door Sensor #1 ,Door Sensor #2 ,Door Sensor#3 ,Door Sensor #4)
Supports : F12 (RS 485) Fingerprint Reader

FEATURES

256 time Zones, 256 access levels
Anti-passback function
It can be installed easily on your network also support TCP/IP and RS485 communication
1/2/4 Door models can be mixed and matched in an optimised System Architecture
Data is preserved if power is lost, Controller continues to operate if data connection is interrupted
Interlock function , Linkage function – Multi-Card opening function, Remote door opening & closing
Real-Time monitoring via web browser
Video server integration
4 auxiliary input may be connected to infrared body detectors,fire alarms, smoke detectors etc.
4 auxiliary output may be connected to alarms,cameras, door bells etc
Supports : eSSL 5000 / 7500 for fingerprint registration

SOFTWARE AND DATABASE SUPPORTED

(1) Biosecurity 3.1.0.0(Web Version) database:- PGSQL / MS SQL
(2) Access Security System 3.5 (Desktop Version) Database Type:- MS Access / MS SQL

Essl INBIO460 PCB Multi Door Access Controller 4Door Controller, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera CP Plus Camera Dahua IP Camera Wireless 360 camera Human detection camera Dlink Ptz camera Hawkvision IP Bullet camera Honeywell IP down camera Biometric attendance Door access control Timewatch Glass door access control Essl Door Access Biomax Biometric Automatic school bell School bell Vamaa Digital board DG board Interactive white panel Evota Interactive 4K flat panel Infrared Interactive white board Cornea Smart classroom equipment School solutions Audio broadcast system Two way audio broadcast School audio broadcast Benq Projector for classroom LG theatre projector CCTV monitors Surveillance hard disk Seagate CCTV hard disk Money counting machine POE switch Parking solution Video door phone Boom barriers Flap barriers X-ray baggage scanner Smart door lock School accessories Intercom Fire and safety

Reviews

There are no reviews yet.

Be the first to review “Essl INBIO460 PCB Multi Door Access Controller 4Door Controller”

You must be logged in to post a review.

FAQs

What is the Essl INBIO460 PCB Multi Door Access Controller?

The Essl INBIO460 is a printed circuit board (PCB) based multi-door access controller designed to manage access to multiple doors within a building or facility.

How does the Essl INBIO460 Multi Door Access Controller work?

The INBIO460 controls access to multiple doors by managing the input and output signals from various access control devices such as card readers, keypads, and electric locks. It verifies user credentials and grants or denies access accordingly.

What are the main features of the Essl INBIO460 Multi Door Access Controller?

Control access to multiple doors independently Support for various access control devices Built-in input/output ports for seamless integration with door hardware Capacity to store and manage user credentials and access permissions Event logging and reporting capabilities for monitoring access activities Integration with other security systems such as CCTV and alarms

Is the Essl INBIO460 suitable for small or large-scale installations?

The Essl INBIO460 is suitable for both small and large-scale installations. It can be used in single-site applications such as small offices or retail stores, as well as multi-site installations such as corporate offices or educational institutions.
