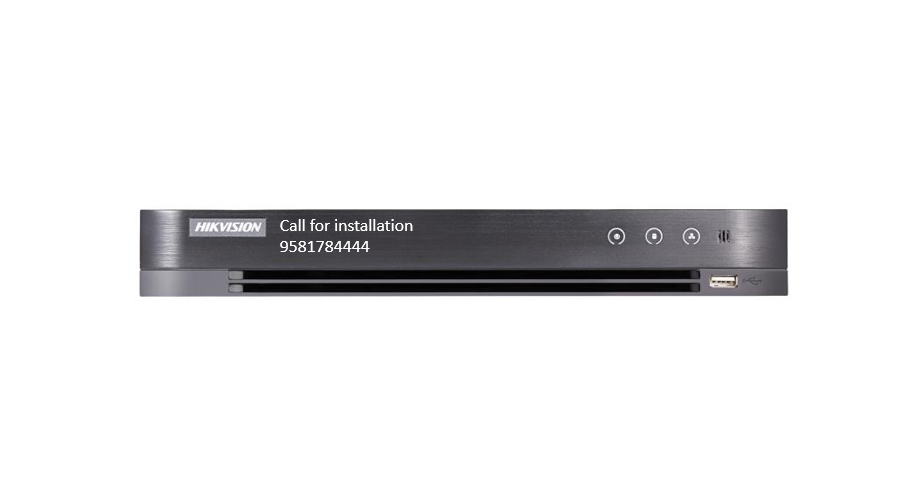

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION
68%
off

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION

Original price was: ₹20,000.00.Current price is: ₹6,450.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION

  • 4 channels and 1 HDD 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 8 network cameras can be connected

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION

PRODUCTLINK: DS-7204HTHI-K1 – Pro Series – Hikvision

  • Perimeter Protection
  • Line Crossing Detection/Intrusion Detection4-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream:

    8 MP@15 fps/5 MP@20fps/3K@20 fps/3 MP@18 fps

    4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 16 Mbps
  • Dual-StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video And Audio
  • IP Video Input

    4-ch (up to 8-ch)

    Up to 8 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • AHD Input5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input

    4-ch, RCA (2.0 Vp-p, 1 KΩ)

    4-ch via coaxial cable

  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch
  • Network
  • Total Bandwidth128 Mbps
  • Remote Connection32
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 × USB 2.0

    Rear panel: 1 × USB 3.0

  • Alarm In/Out4/1
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight≤ 1.5 kg (3.3 lb, without HDD)

HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety

Reviews

There are no reviews yet.

Be the first to review “HIKVISION 4CHANNEL 4K RECORDING DVR DS-7204HTHI-K1 H.265 4 CCTV CAMERA COMPLETE SOLUTION”

FAQs

What is the maximum resolution supported by the DS-7204HTHI-K1 DVR?
The DS-7204HTHI-K1 DVR supports a maximum resolution of 4K (3840×2160 pixels), ensuring ultra-high-definition video surveillance with crisp and detailed images.
How many channels does this DVR support?
This DVR supports up to 4 channels, allowing for simultaneous monitoring of up to 4 CCTV cameras, ideal for small-scale surveillance setups.
What is H.265 compression?
H.265 compression is an advanced video compression technology that offers efficient storage and reduced bandwidth usage compared to previous compression standards, allowing for longer recording durations without compromising on video quality.
What components are included in the complete CCTV camera solution?
The complete solution typically includes the DVR unit, 4 CCTV cameras, cables, power supply, mounting hardware, and necessary accessories for installation and setup.
