Video And Audio
IP Video Input4-ch
Incoming Bandwidth40 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output,
VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
Video Output ModeHDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265+,H.265,H.264+,H.264
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback4-ch

Network
Remote Connection32
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 50 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 8 TB capacity for each disk
USB Interface2 × USB 2.0
Alarm In/OutN/A (4/1 is optional)

HIKVISION 4CHANNEL POE 4K RECORDING NVR DS-7604NI-Q1/4P, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera CP Plus Camera Dahua IP Camera Wireless 360 camera Human detection camera Dlink Ptz camera Hawkvision IP Bullet camera Honeywell IP down camera Biometric attendance Door access control Timewatch Glass door access control Essl Door Access Biomax Biometric Automatic school bell School bell Vamaa Digital board DG board Interactive white panel Evota Interactive 4K flat panel Infrared Interactive white board Cornea Smart classroom equipment School solutions Audio broadcast system Two way audio broadcast School audio broadcast Benq Projector for classroom LG theatre projector CCTV monitors Surveillance hard disk Seagate CCTV hard disk Money counting machine POE switch Parking solution Video door phone Boom barriers Flap barriers X-ray baggage scanner Smart door lock School accessories Intercom Fire and safety

Reviews

There are no reviews yet.

Be the first to review “HIKVISION 4CHANNEL POE 4K RECORDING NVR DS-7604NI-Q1/4P”

You must be logged in to post a review.

FAQs

What is the Hikvision DS-7604NI-Q1/4P NVR?

The Hikvision DS-7604NI-Q1/4P is a network video recorder designed for small-scale surveillance systems. It supports up to 4 channels of IP cameras with Power over Ethernet (PoE) capabilities and offers 4K resolution recording.

What does "4-Channel PoE" mean?

"4-Channel PoE" indicates that the NVR has built-in PoE ports to directly power and connect up to 4 IP cameras without the need for additional power adapters or switches.

What does "4K Recording" imply?

"4K recording" signifies that the NVR supports recording video footage in Ultra High Definition (UHD) resolution, providing exceptional clarity and detail compared to lower resolution formats such as 1080p Full HD.

What are the key features of the DS-7604NI-Q1/4P?

Some key features include: Support for up to 4 PoE-enabled IP cameras. 4K recording resolution. H.265+/H.265/H.264+/H.264 video compression. HDMI and VGA output for video display. Remote viewing and management via mobile app or web browser. Various recording modes (continuous, motion detection, etc.). Plug-and-play setup with PoE support for simplified installation.

Does it come with built-in storage?

The DS-7604NI-Q1/4P typically does not come with built-in storage. However, it supports SATA hard drives for storage expansion, allowing users to install their preferred storage capacity based on their needs.

SKU: HIK-172 Categories: 4 CH, HIKVISION, NVR Tags: 4CH POE NVR, 4channel nvr, HIKVISION 4CH NVR

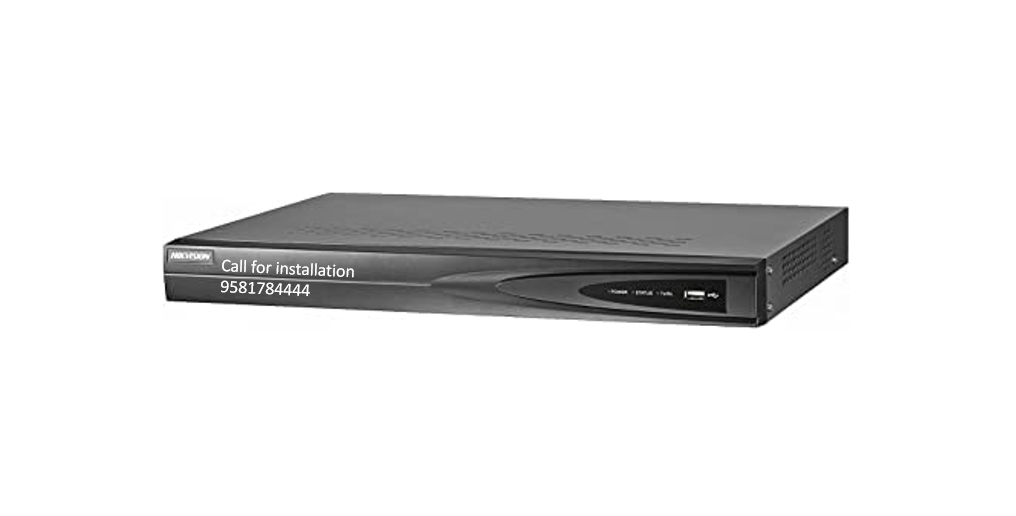

HIKVISION 4CHANNEL POE 4K RECORDING NVR DS-7604NI-Q1/4P
