180M Mini RG59 Coaxial Cable with Power Cable HIKVISIN DS-1LH1SCAM 593C 3+1 Cable
54%
off

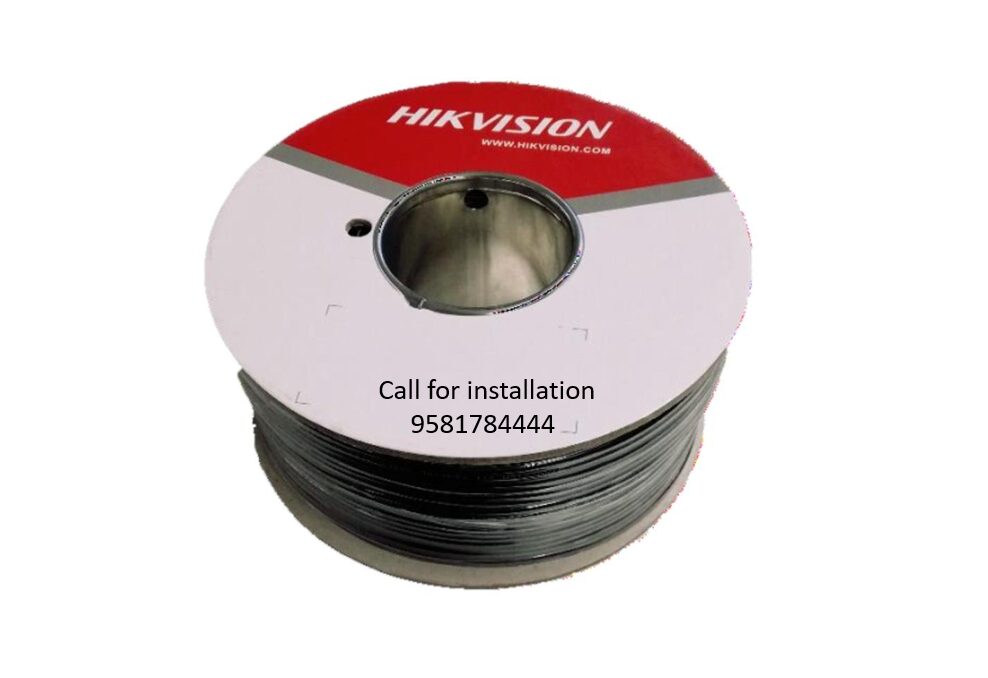

HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable

Original price was: ₹3,999.00.Current price is: ₹1,849.00.

Installation and AMC service available throughout Hyderabad/Telangana.

We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana

HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable

  • 90/180 m reliable coaxial cable with power cables
  • Excellent transmission performance using solid copper
  • Power cable conductor material is bare copper
  • Full diameter and full length
  • High shielding performance via high braiding density

One day Installation Available
Free delivery
1 years onsite service
1years warranty

10 days replacement

Return and Replacement policy

Click Here For Same Day Installation and Discounts

Get Quote & Free Demo

ENQUIRY NOW

HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable

HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable

PRODUCTLINK: DS-1LH1SCA3C-090B – Hikvision

  • Coaxial Cable
  • Conductor MaterialBare Copper
  • Conductor Wire Gauge26AWG
  • Conductor Diameter0.41 ± 0.01mm
  • Insulation MaterialFoam PE
  • Insulation Diameter2.0 ± 0.1mm
  • Tape MaterialAluminum foil
  • Tape Lappingbonded
  • Braid MateriaCopper Clad Aluminum Magnesium
  • Braiding Standard5*16*0.12±0.008mm
  • Braiding Density80%
  • Impedance75 ohms
  • Jacket MaterialPVC
  • Jacket Average Thickness≥0.45mm
  • Power Cable
  • Conductor MaterialBare Copper
  • Conductor Diameter0.41 ± 0.01mm;11*(0.16 ±0.01)mm
  • Insulation MaterialPVC(Red, Black,Yellow);Foam PE; PVC(Red, Black)
  • Insulation Diameter1.2 ± 0.1mm;2.0 ± 0.1mm
  • Jacket MaterialPVC
  • Jacket Average Thickness≥0.45mm
  • Siamese Cable General
  • Length90m;180m
  • Diameter3.5×7.0±0.3mm;3.5×7.2±0.3mm
  • ColorBlack
  • Operating Temperature-15~70ºC
  • Storage Temperature-15~70ºC
  • Dimensions ( L X W X H )210mm * 210mm * 103mm;260mm * 260mm * 120mm

HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable, CCTV surveillance, CCTV camera, Security systems, Interactive panels, Whiteboard, Discount offers available. You may visit Shop, same day Installation

Search Term

Hikvision CCTV camera  CP Plus Camera  Dahua IP Camera  Wireless 360 camera  Human detection camera  Dlink Ptz camera  Hawkvision IP Bullet camera  Honeywell IP down camera  Biometric attendance  Door access control  Timewatch Glass door access control  Essl Door Access  Biomax Biometric  Automatic school bell  School bell  Vamaa Digital board  DG board  Interactive white panel  Evota Interactive 4K flat panel  Infrared Interactive white board  Cornea Smart classroom equipment  School solutions  Audio broadcast system  Two way audio broadcast  School audio broadcast  Benq Projector for classroom  LG theatre projector  CCTV monitors  Surveillance hard disk Seagate CCTV hard disk Money counting machine  POE switch  Parking solution  Video door phone  Boom barriers  Flap barriers  X-ray baggage scanner  Smart door lock  School accessories  Intercom  Fire and safety



Reviews

There are no reviews yet.

Be the first to review “HIKVISION 90m Mini RG59 Coaxial Cable with Power Cable DS-1LH1SCA3C-090B 3+1 Cable”

FAQs

What is the length of the cable?
The cable is 90 meters long, providing ample length for CCTV camera installations in various settings.
What type of cable is it?
The cable is a Mini RG59 coaxial cable with power cable, specifically designed for CCTV camera installations.
What is the configuration of the cable?
The cable is a 3+1 cable, meaning it consists of three coaxial cables for video transmission and one additional cable for power transmission.
What is the purpose of the coaxial cable in CCTV installations?
The coaxial cable is used to transmit video signals from the CCTV camera to the recording or monitoring device, ensuring high-quality video transmission over long distances.
