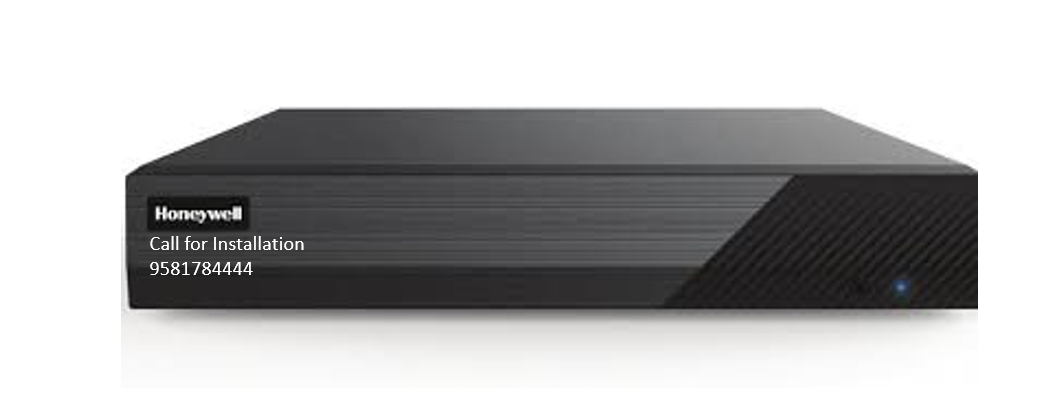

Impact Honeywell 4Ch DVR 2MP AHD Model:I-HA-DVR-2104-L Call for Installation

Impact Honeywell 4Ch DVR 2MP AHD Model:I-HA-DVR-2104-L Call for Installation

Impact Honeywell 4Ch DVR 2MP AHD Model:I-HA-DVR-2104-L

SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
VIDEO AND AUDIO
Analog Camera Input 4 Channel, BNC
AHD Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
RECORDING
Video Compression H.265 / H.264
Resolution 1080N, 720P, 960H, D1, CIF
Record Rate Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps)
Sub stream: CIF (1~15fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
DISPLAY
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Multi-screen Display 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
NETWORK
Ethernet 1 RJ-45 Port (100 Mbps)
Network Function HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP;
DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP Search
Max. User Access 128 users
Smart Phone iPhone, iPad, Android (phone and tablet)
Interoperability ONVIF Conformant
2MP AHD HA-DVR-2104-L Technical Specifications
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer
and Screen Tips
Video Detection Motion Detection, Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4
Search Mode Time/Date; Alarm; Motion Detection; Exact Search
(accurate to a second); Smart Search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next v, Previous Camera, Full Screen, Repeat,
Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network

STORAGE

Internal HDD 1 SATA Port, up to 6TB capacity
AUXILIARY INTERFACE
USB 2 USB 2.0
RS485 1 Port, for PTZ Control
ELECTRICAL
Power Supply DC12V/1.5A
Power Consumption
(without HDD) <10W
PHYSICAL
Dimensions 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight(without HDD) 0.9kg ( 2.0lb)
ENVIRONMENTAL
Operating Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
CERTIFICATIONS
Certifications BIS certified

Impact Honeywell 4Ch DVR 2MP AHD Model:I-HA-DVR-2104-L H.265 dual-stream video compression Supports AHD/HQA/CVI/TVI/CVBS video inputs CCTV surveillance CCTV camera for home Security systems Discount offers available. You may visit Shop, Same day Installation.
