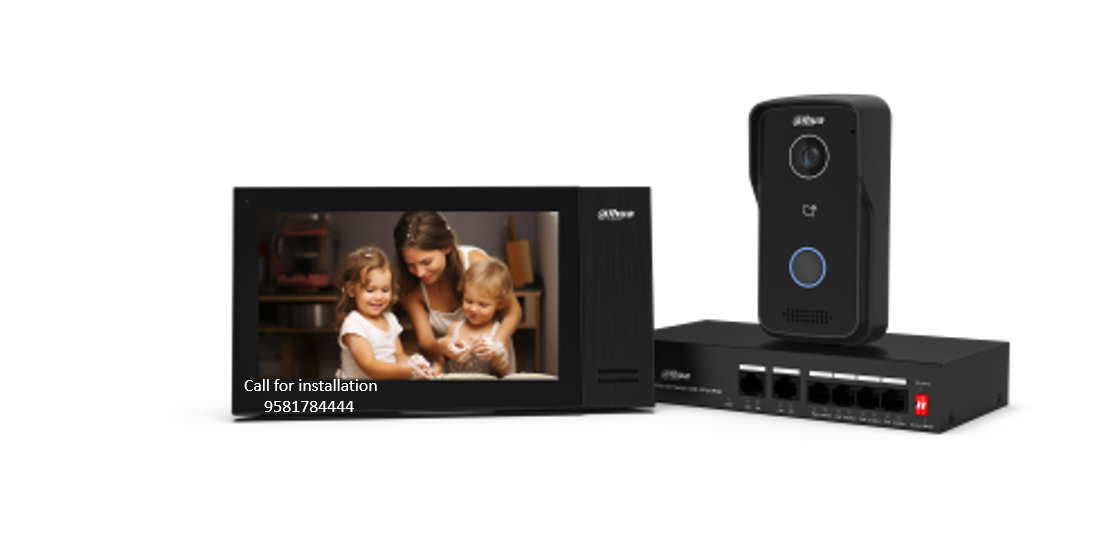

IP Video Intercom KIT Dahua DHI-KTP03 VDP
Original price was: ₹30,000.00.₹13,999.00Current price is: ₹13,999.00.
Installation and AMC service available throughout Hyderabad/Telangana.
We also provide wide range of CCTV cameras, installation and AMC service available throughout Hyderabad/Telangana
IP Video Intercom KIT Dahua DHI-KTP03 VDP
IP Villa Door Station
> Megapixel image sensor
> Supports IR illumination and night vision.
> Two-way audio and voice call through app.
> Can be managed through the management platform; supports voice call between App and the door station.
> Card unlock, unlock on the indoor monitor, and remote unlock through the App.
> Supports IP65 (Silicone sealant is needed.
> For details, see the quick start guide.)
> Supports 10000 cards.
> Supports standard PoE power supply.
> Controls two locks.
IP Indoor Monitor
> 7″ TFT capacitive touch screen, 1024 × 600.
> 6-channel alarm input and 1-channel alarm output.
> Standard PoE.
> Door station and IPC monitor.
> H.265 and H.264 video decoding.
> High performance & cost-effective.
One day Installation Available
Free delivery
1 years onsite service
1years warranty
IP Video Intercom KIT Dahua DHI-KTP03 VDP
IP Video Intercom KIT Dahua DHI-KTP03 VDP
PRODUCTLINK: KTP03 – Dahua International (dahuasecurity.com)
| Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | DHI-VTO2111D-P-S3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Button Type | Mechanical | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF; CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Camera | 1/2.8″ 2 MP CMOS high definition, low illumination/DWDR/ color/IR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | H: 107°; V: 60°; D: 122° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.264; H.265 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Resolution | Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | PAL: 25 fps; NTSC: 30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | 256 Kbps–8 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Light Compensation | Auto IR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | Built-in speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Mode | Two-way audio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Enhancement | Echo suppression/digital noise reduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 16 KHz, 16 bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Mode | Full digital | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Unlock Mode | Card; app; indoor monitor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Type | IC card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Leave Videos | Yes (SD card inserted in VTH is needed) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Web Configuration | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Distance | 0 cm–4.5 cm (0″–1.77″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Issue Card Locally | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | PC + Acrylic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Capacity | 10000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Output | 1 port, 12 V and 200 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exit Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Door Status Detection | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lock Control | 1 port, normally closed by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1 × 10/100 Mbps network port (8-core white ribbon cable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
